Removal And Installation: Notes

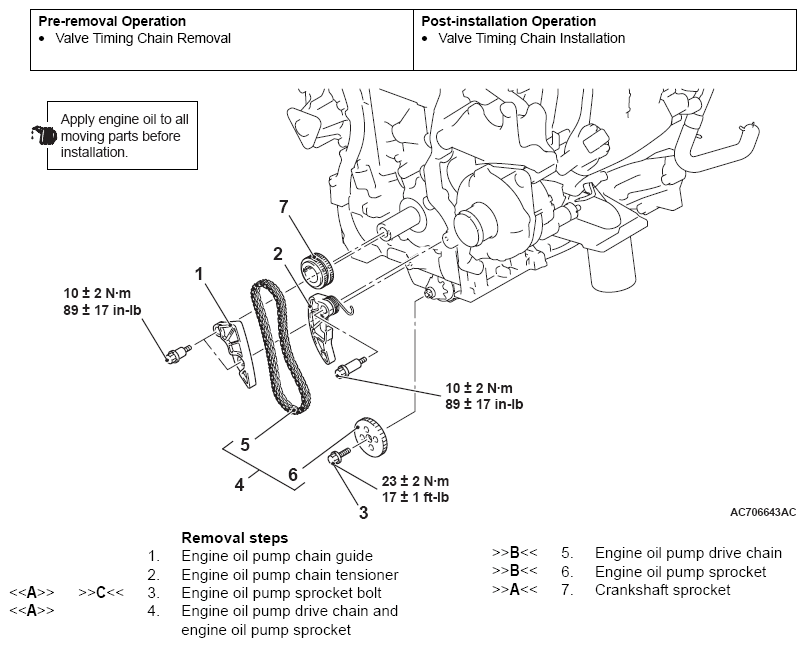

Fig 1: Oil Pump Chain Components With Torque Specifications
G07046233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
