Camshaft Position Sensor
›
Removal And Installation
Removal And Installation

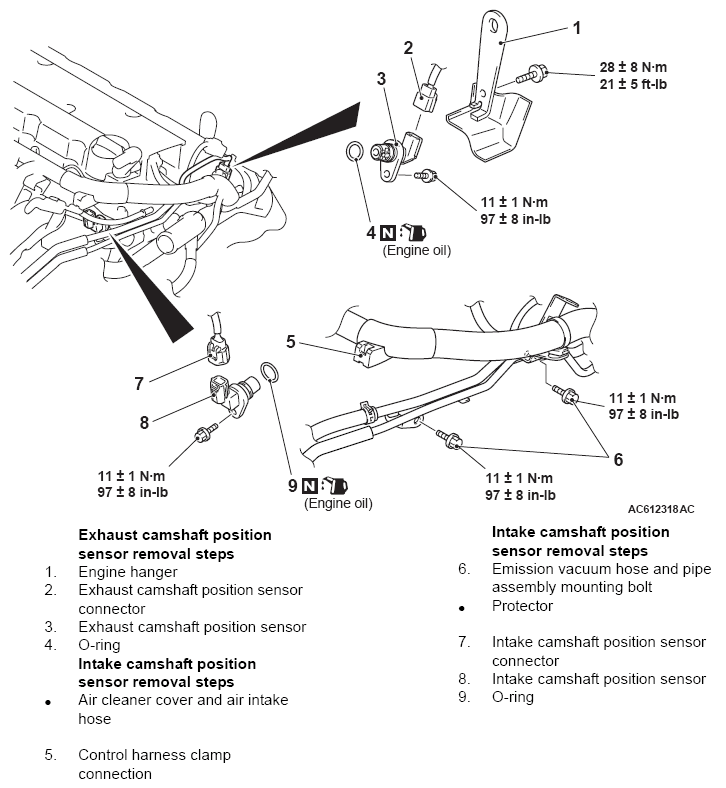

Fig 1: Camshaft Position Sensor Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
