Exhaust Gas RECIRCULATION (EGR) System
›
Removal And Installation
›
Notes
Removal And Installation: Notes

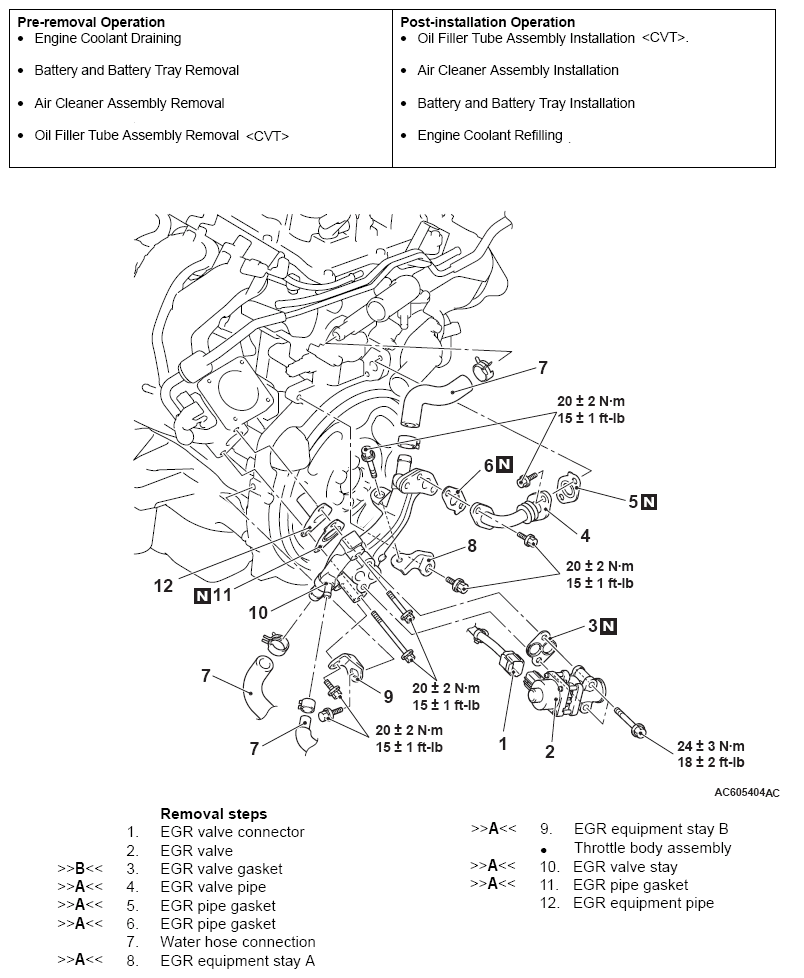

Fig 1: Exhaust Gas Recirculation (EGR) System Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
