Removal And Installation
›
Notes
Removal And Installation: Notes

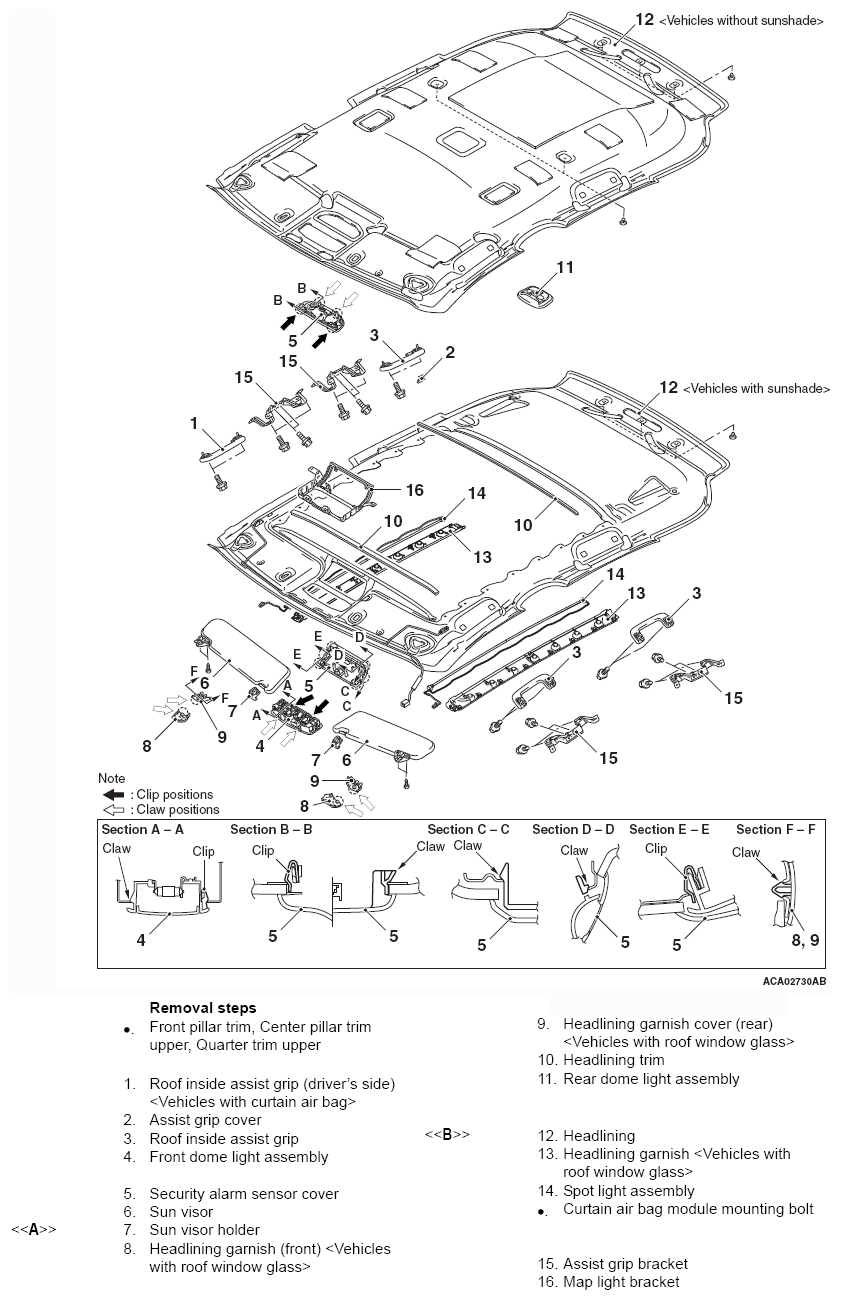

Fig 1: Identifying Headlining Remove/Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
