Disassembly And Reassembly: Notes

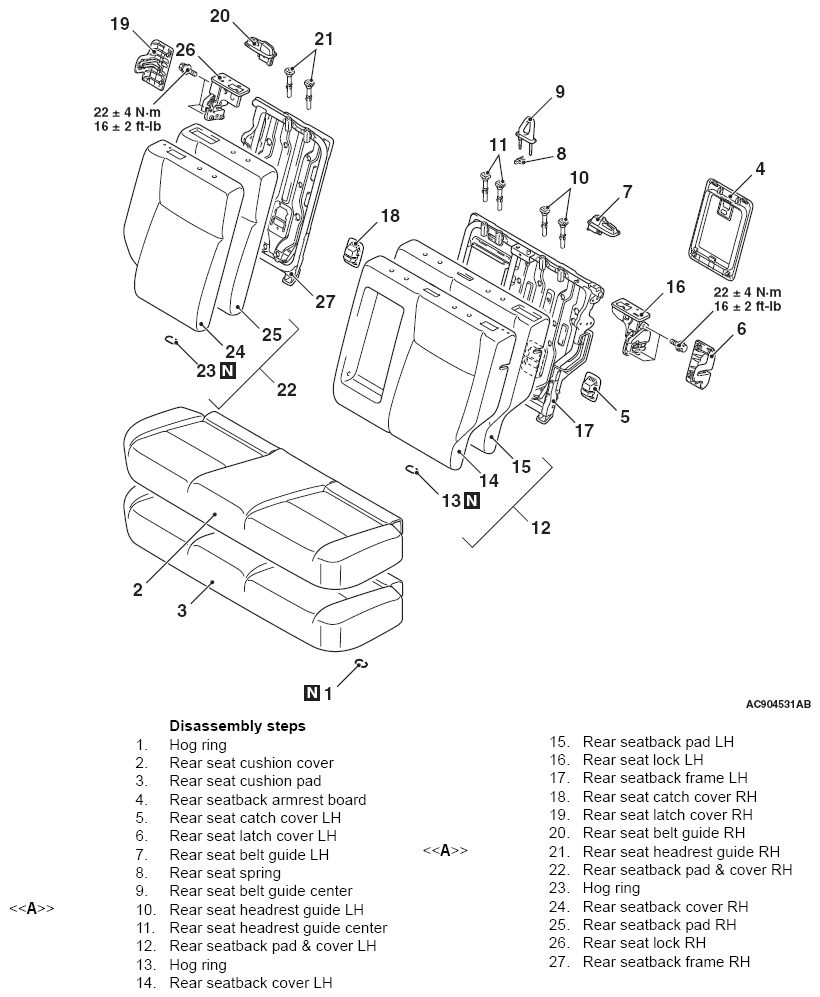

Fig 1: Rear Seat Cushion Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
