Home › Mitsubishi › 2012 › RVR ES › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle Overhaul › Select Lever › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

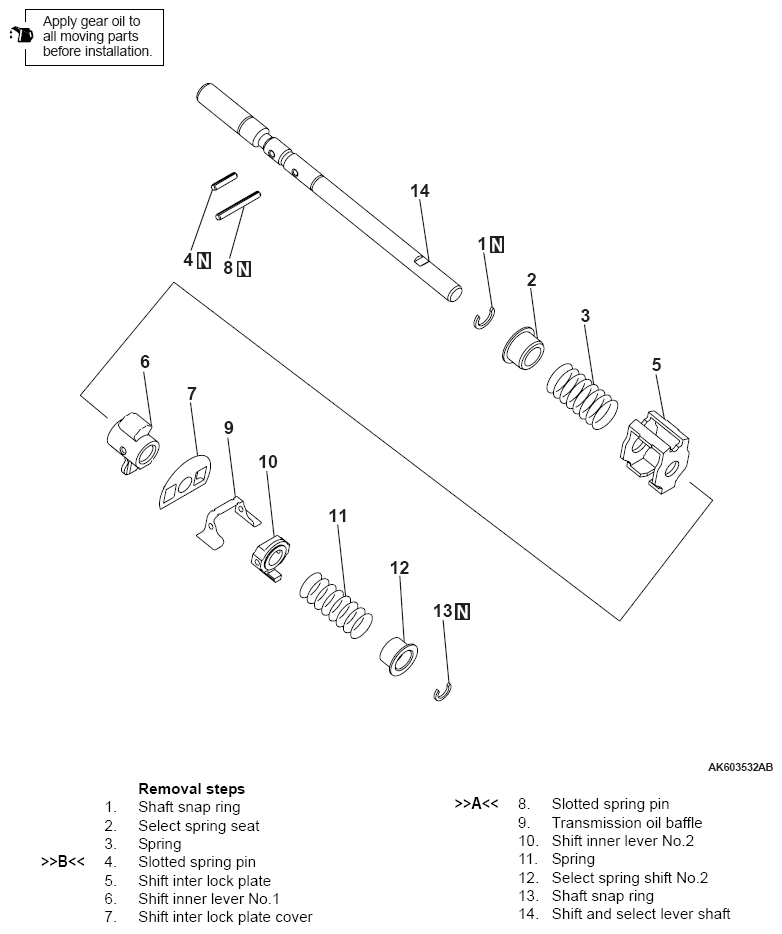

Fig 1: Identifying Select Lever Disassembly/Assembly Components
G07047560Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
