Disassembly And Assembly: Notes

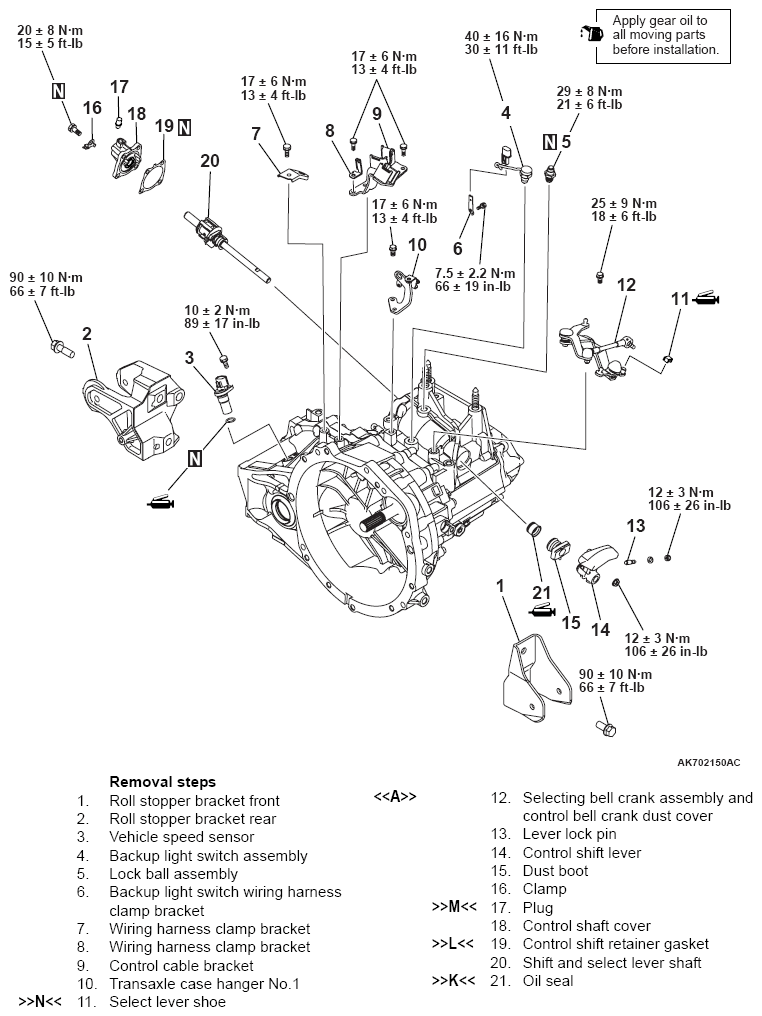

Fig 1: Transaxle Disassembly/Assembly Replacement Components With Torque Specifications (1 Of 3)
G07047487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

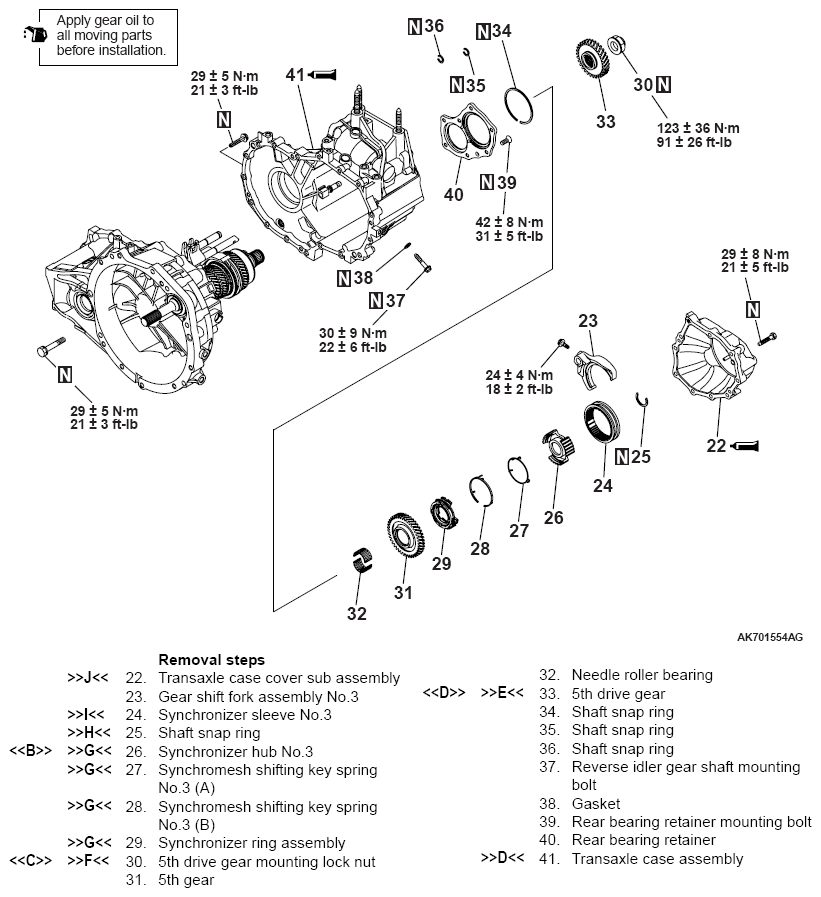

Fig 2: Transaxle Disassembly/Assembly Replacement Components With Torque Specifications (2 Of 3)
G07047488Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

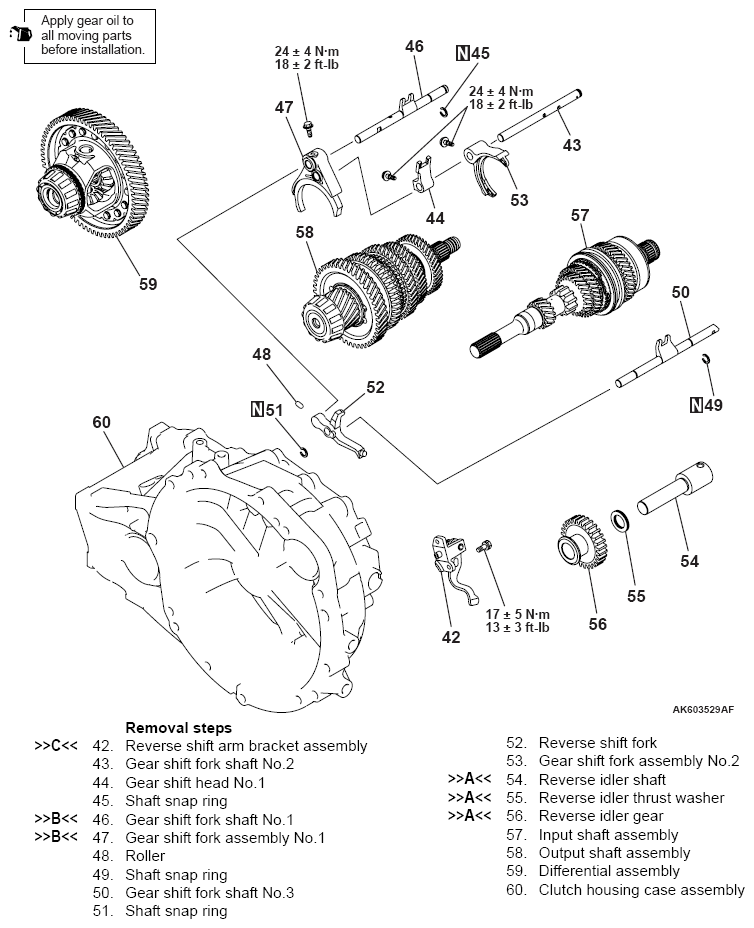

Fig 3: Transaxle Disassembly/Assembly Replacement Components With Torque Specifications (3 Of 3)
G07047489Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
