Disassembly And Assembly: Notes

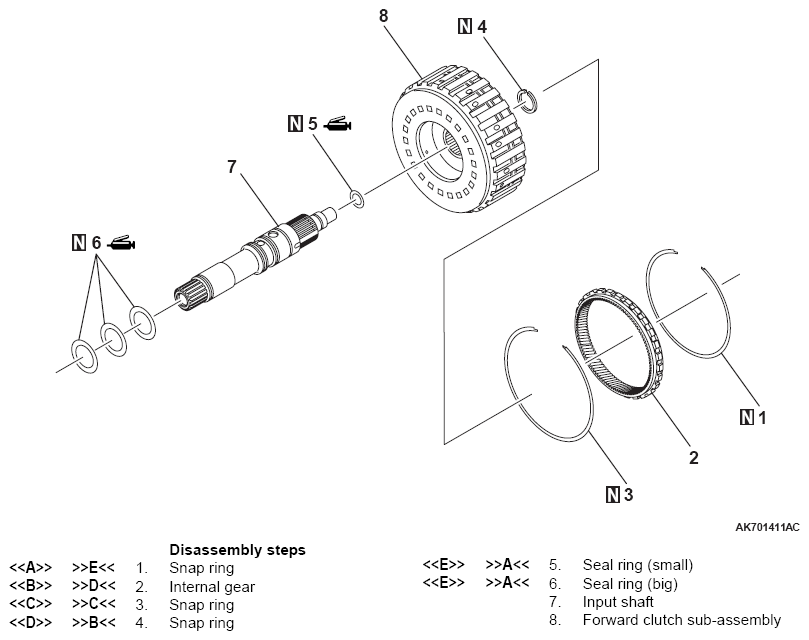

Fig 1: Identifying Forward Clutch Disassembly/Assembly Components
G07047908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
