Disassembly And Assembly: Notes

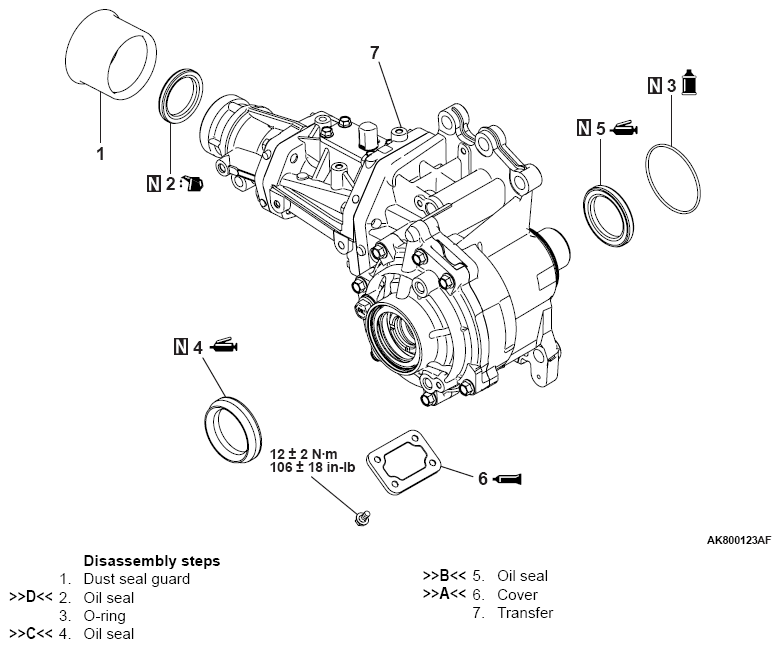

Fig 1: Transfer Disassembly/Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998812: Installer cap
• MB992154: Oil seal installer
• MB992075: Handle
• MB992142: Oil seal installer
• MB990936: Installer adapter
