Power Plant Mount
›
Transaxle Mounting
›
Removal And Installation
›
M/T
Removal And Installation: M/T

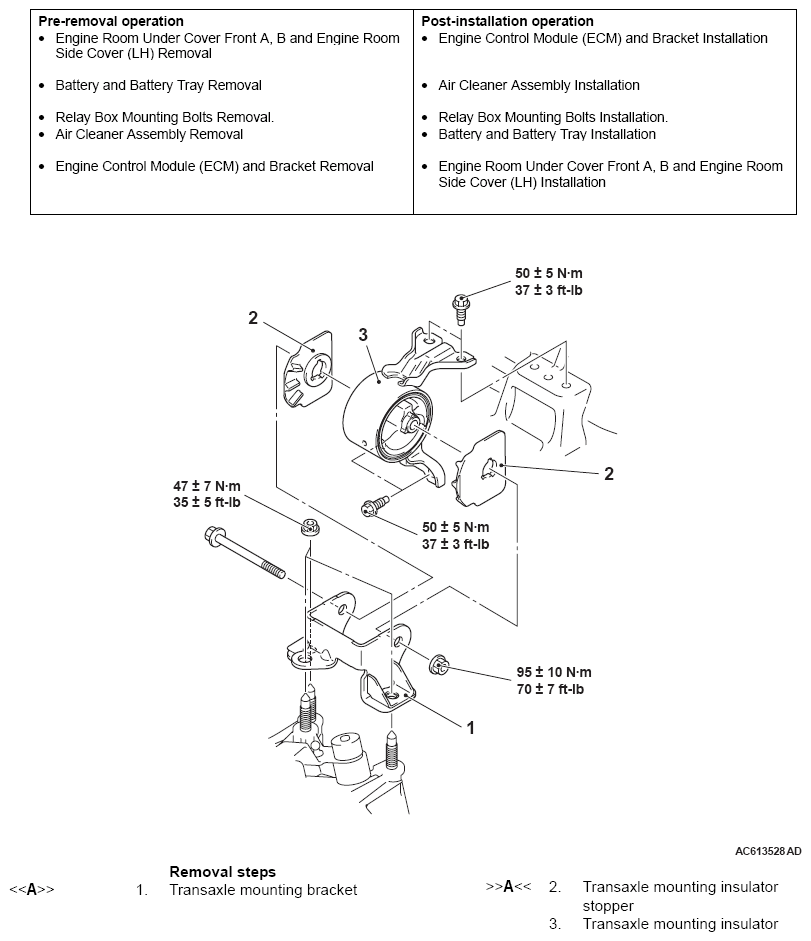

Fig 1: Transaxle Mounting Replacement Components With Torque Specifications (M/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
