Disassembly And Assembly: Notes

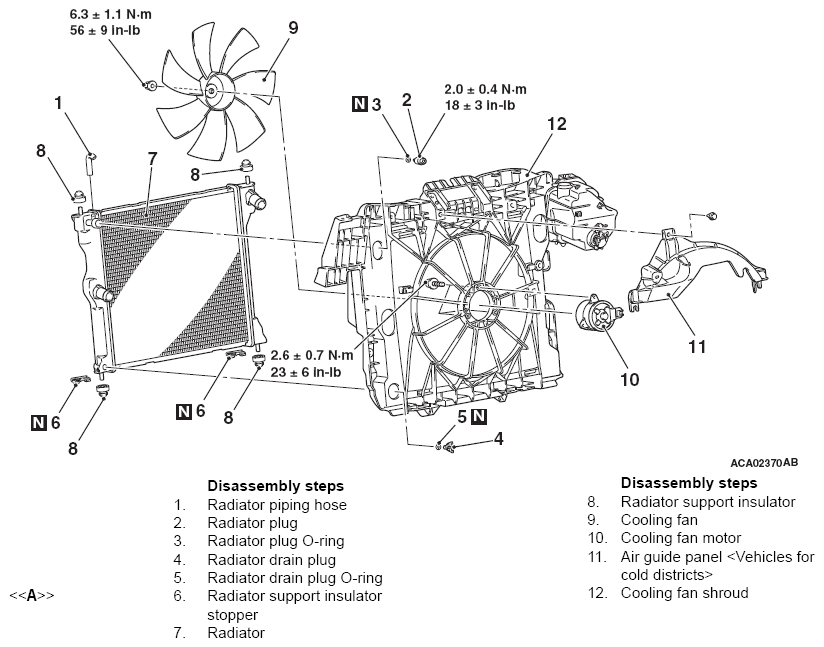

Fig 1: Identifying Radiator Assembly Components - 2012

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

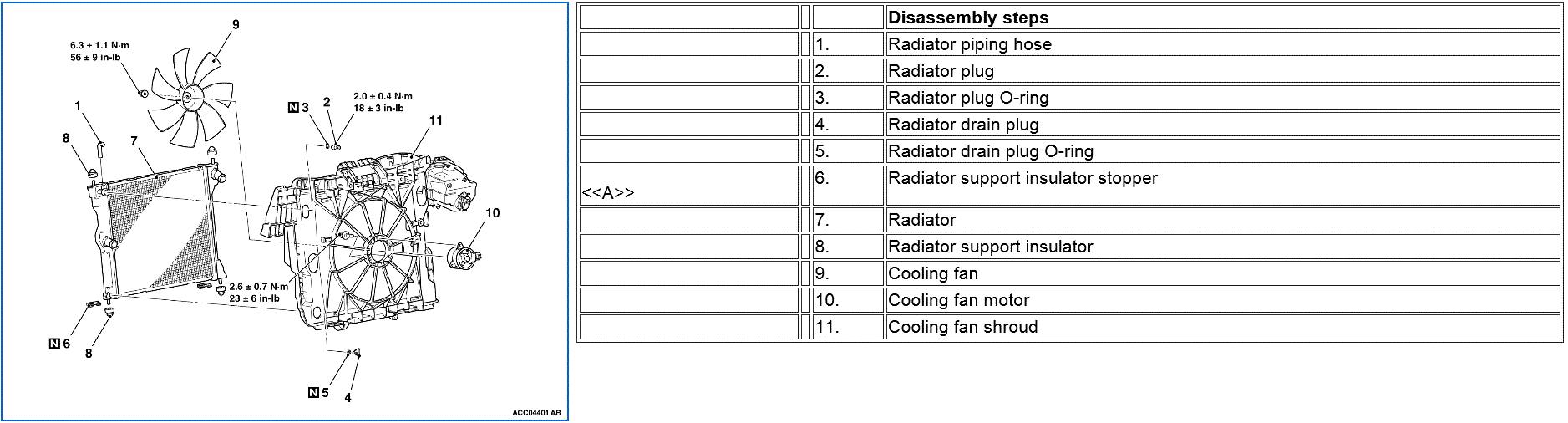

Fig 2: Identifying Radiator Assembly Components - 2014

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
