Special Tools

Tool Tool number and name Supersession Application

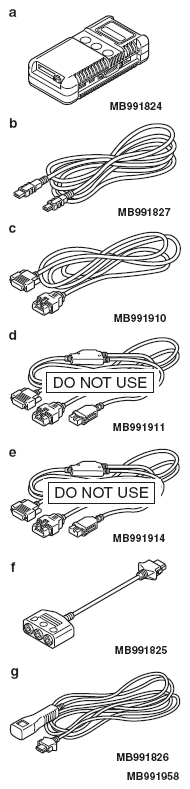

G08297385
 MB991958 Scan tool (M.U.T.-III sub assembly)
  1. MB991824 Vehicle communication interface (V.C.I.)
  2. MB991827 M.U.T.-III USB cable
  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M.U.T.-III main harness C (for Chrysler models only)
  6. MB991825 M.U.T.-III adapter harness
  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B or C instead, the CAN communication does not function correctly.
  • Coolant change
  • Coolant leak check
G08297386
 MB992193 Radiator cap tester
  1. Tester
  2. Adapter
 General service tool
  • Coolant leak check
  • Radiator condenser tank cap valve opening pressure check
G08297387
 MB992190 Radiator cap tester adapter set
  1. System adapter
  2. Cap adapter
 General service tool
G08297388
 MB992042 Water temperature sensor wrench MB992042-01 Water temperature sensor removal and installation
