Removal And Installation: Notes

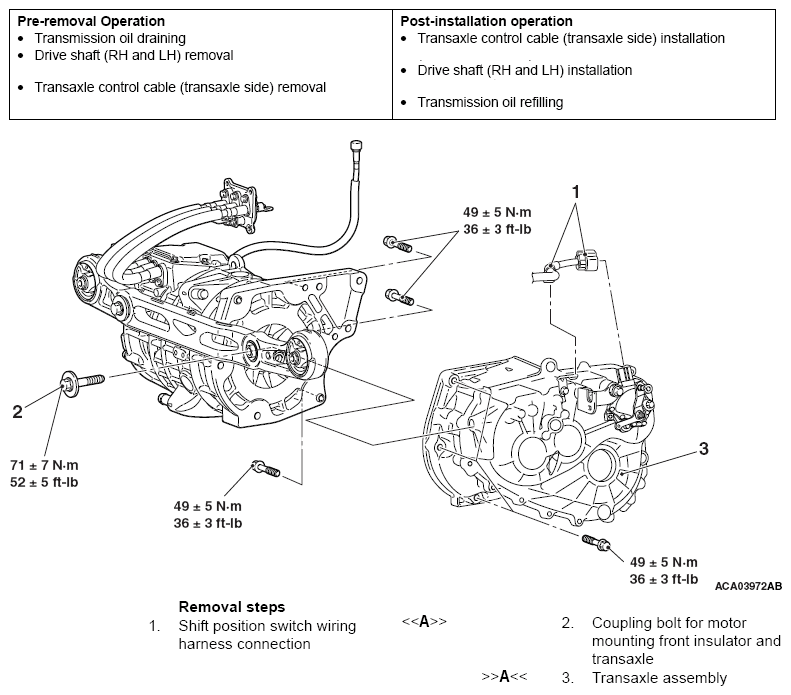

Fig 1: Transaxle Assembly Replacement Components Removing Order With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
