Disassembly And Reassembly: Notes

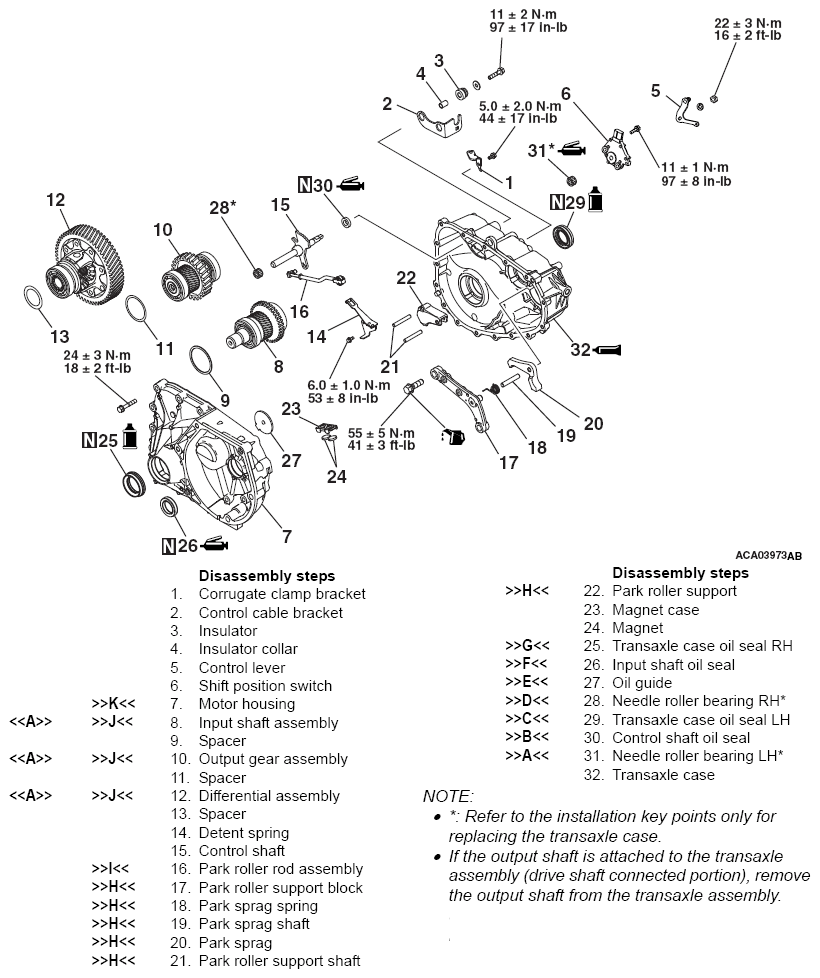

Fig 1: Disassembling Order Of Transaxle Components With Torque Specifications

G08297483

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

*: Refer to the installation key points only for replacing the transaxle case.
If the output shaft is attached to the transaxle assembly (drive shaft connected portion), remove the output shaft from the transaxle assembly. (Refer to DRIVESHAFT ASSEMBLY REMOVAL AND INSTALLATION ) .
