Section 1 (MITSUBISHI Multi-Communication System (MMCS) - Lancer Evolution)
›
Removal And Installation
›
Multivision Display
Multivision Display
WARNING:
This page is about a different variant/trim than selected.

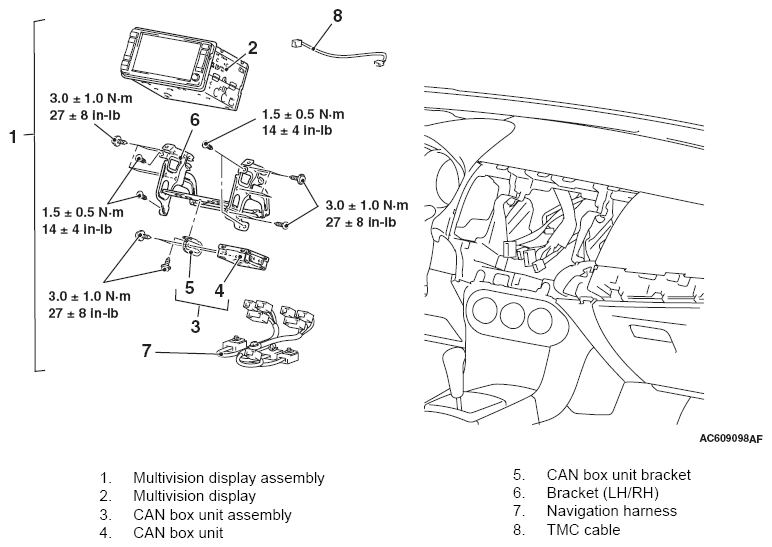

Fig 1: Multivision Display Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
