Inspection Procedure 2: Defective Power Supply System Of The Ignition Switch: Notes

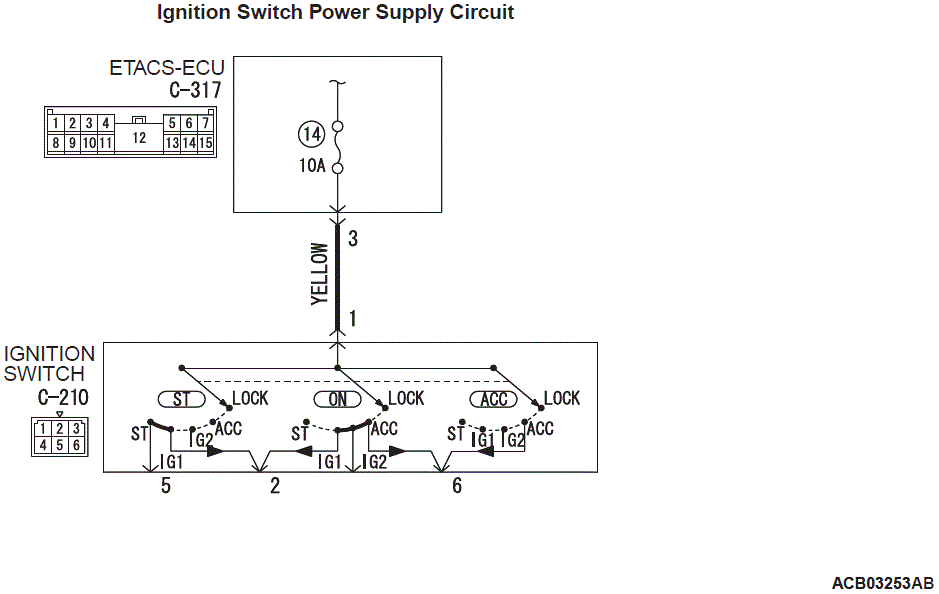

Fig 1: Ignition Switch Power Supply Circuit Diagram
G00538191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

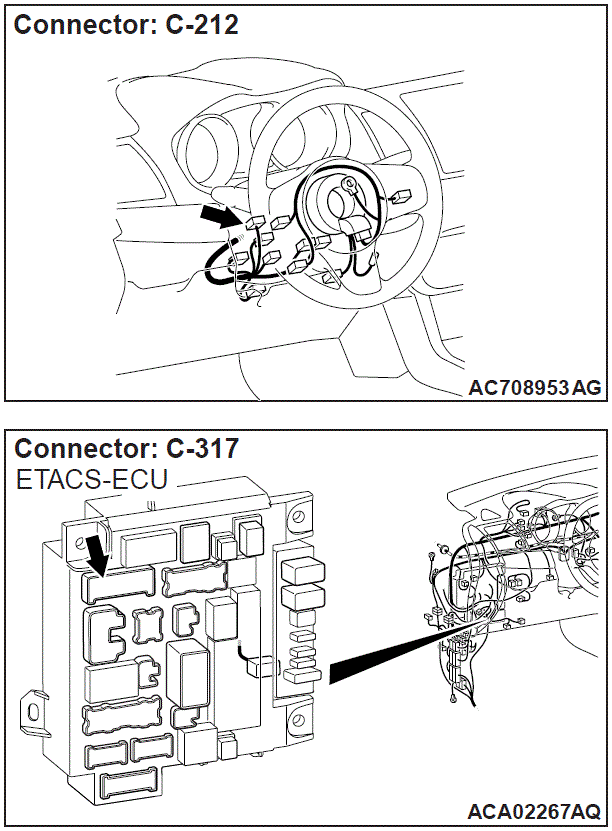

Fig 2: Connector C-212 & C-317
G00538192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
