Body Construction - Evolution
›

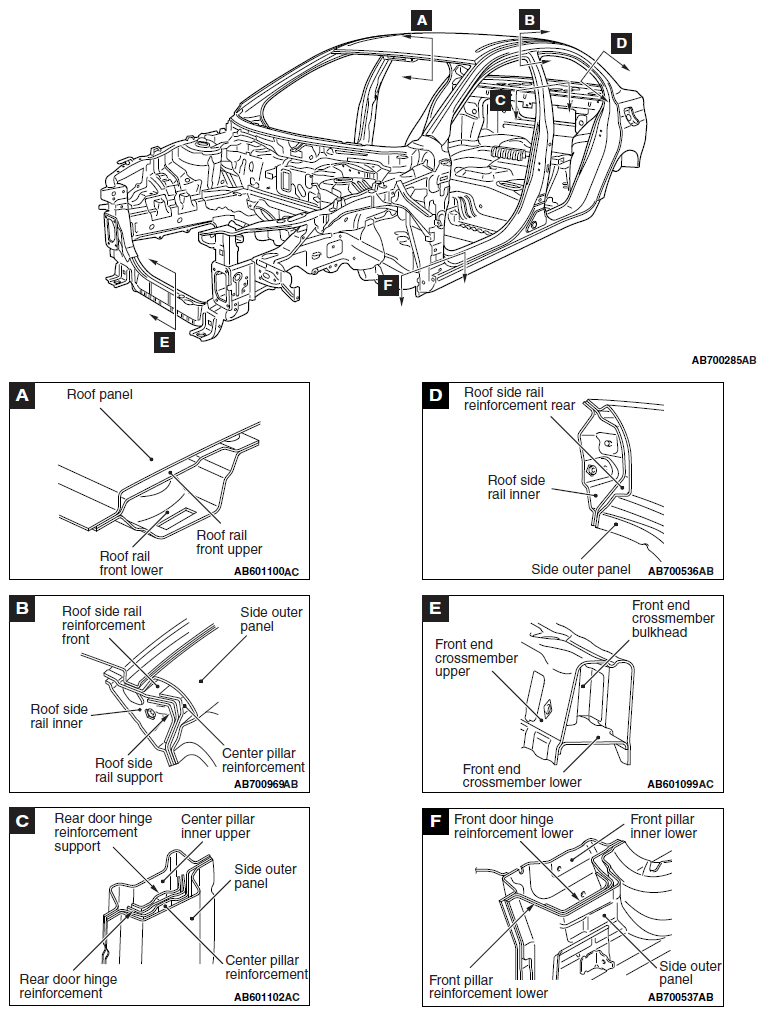

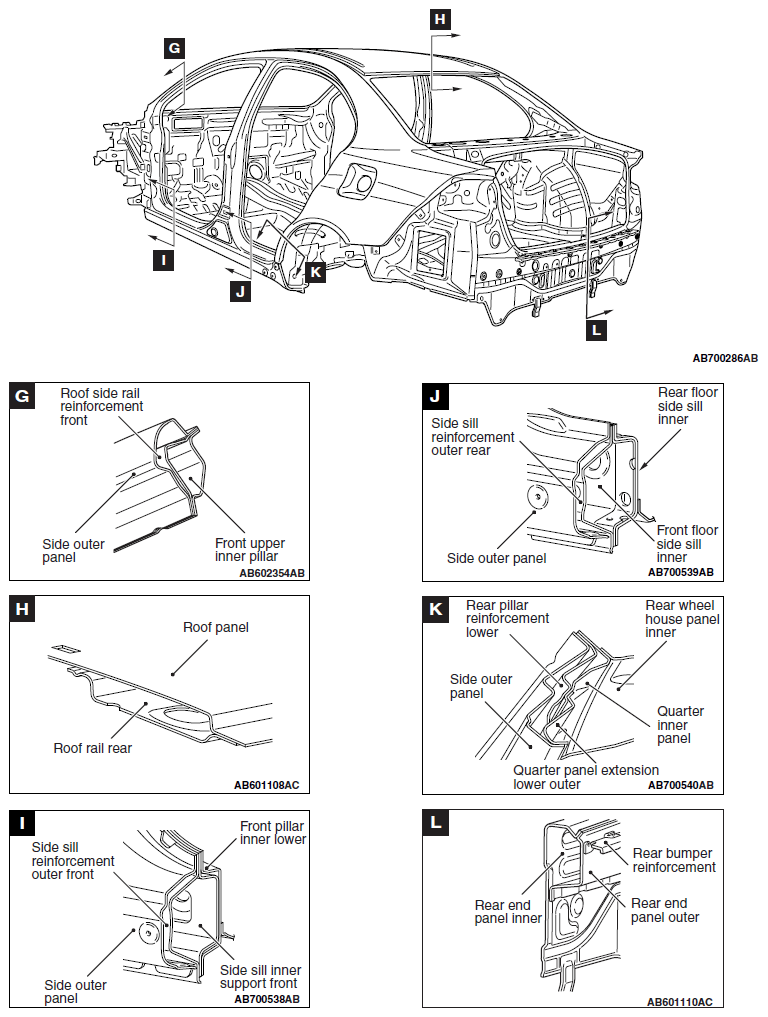

Body Main Cross-Sectional Views
Body Main Cross-Sectional Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
