Hands-Free Interface System

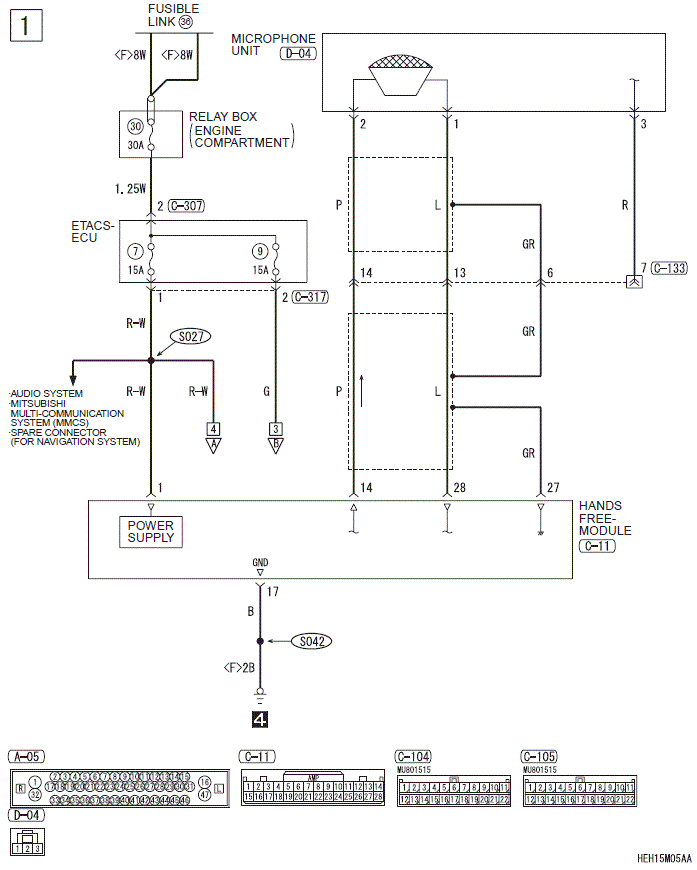

Fig 1: Hands-Free Interface System Circuit Diagram (1 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

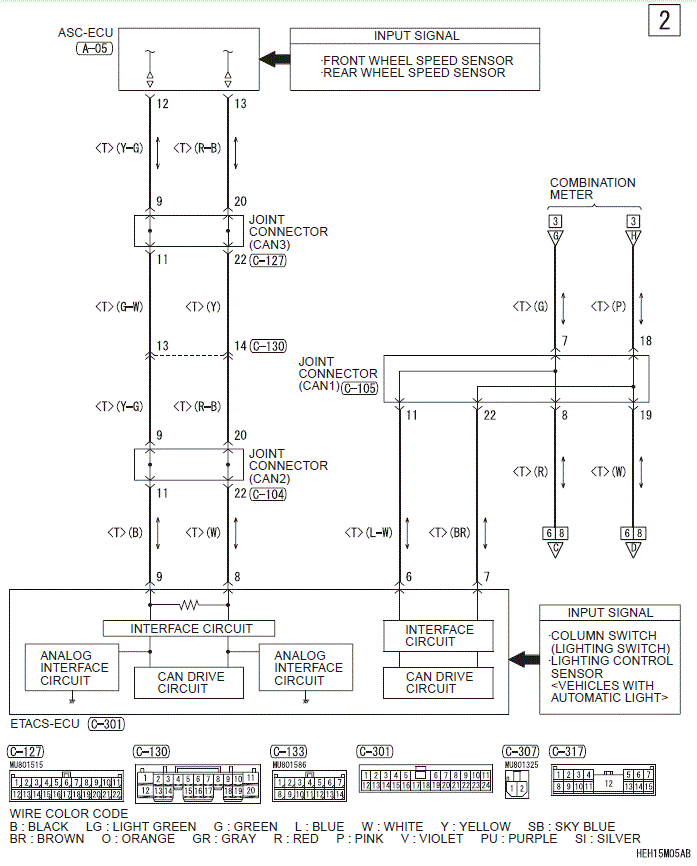

Fig 2: Hands-Free Interface System Circuit Diagram (2 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

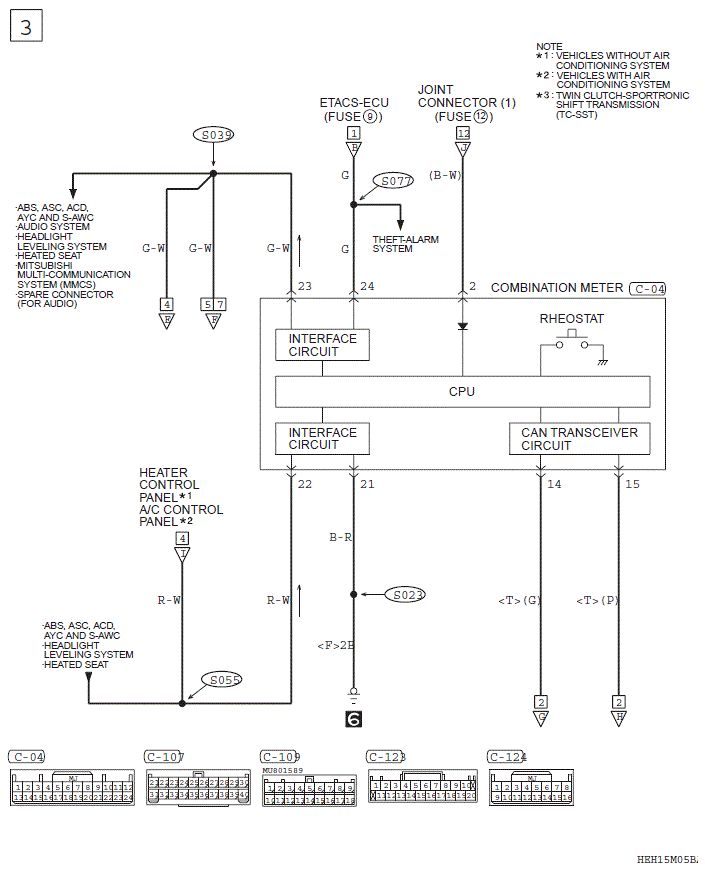

Fig 3: Hands-Free Interface System Circuit Diagram (3 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

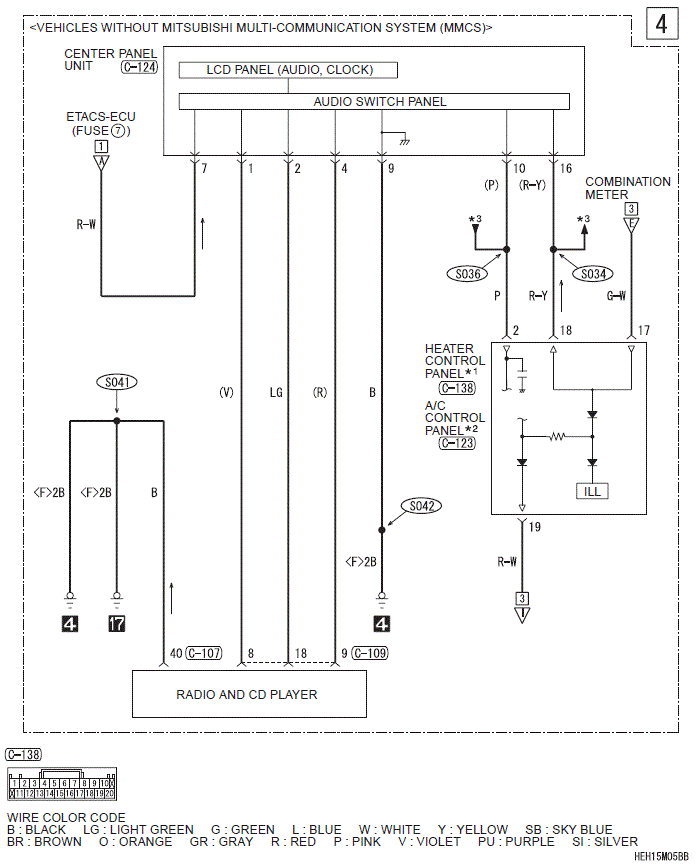

Fig 4: Hands-Free Interface System Circuit Diagram (4 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

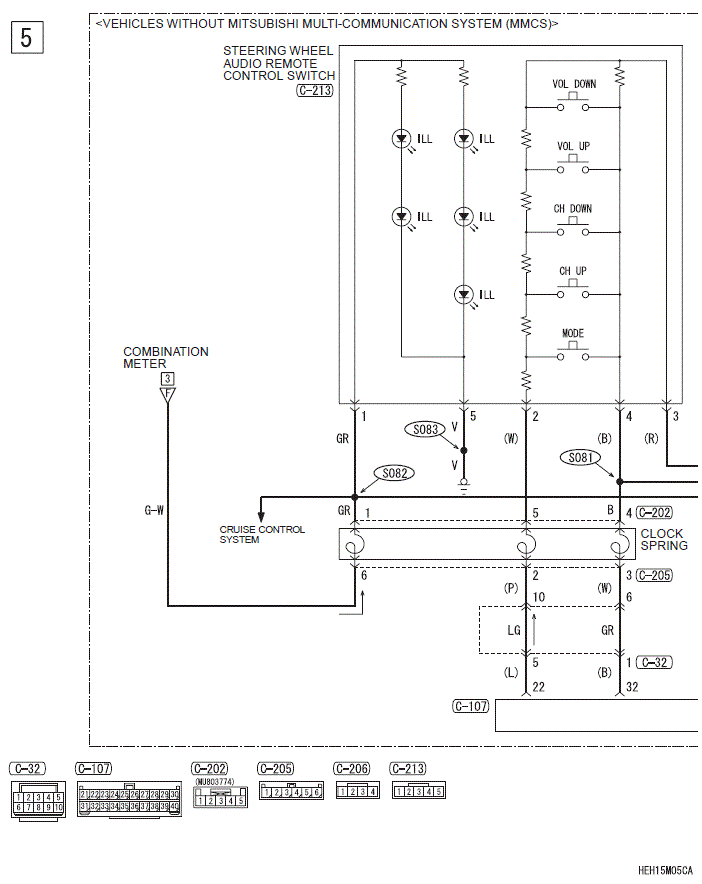

Fig 5: Hands-Free Interface System Circuit Diagram (5 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

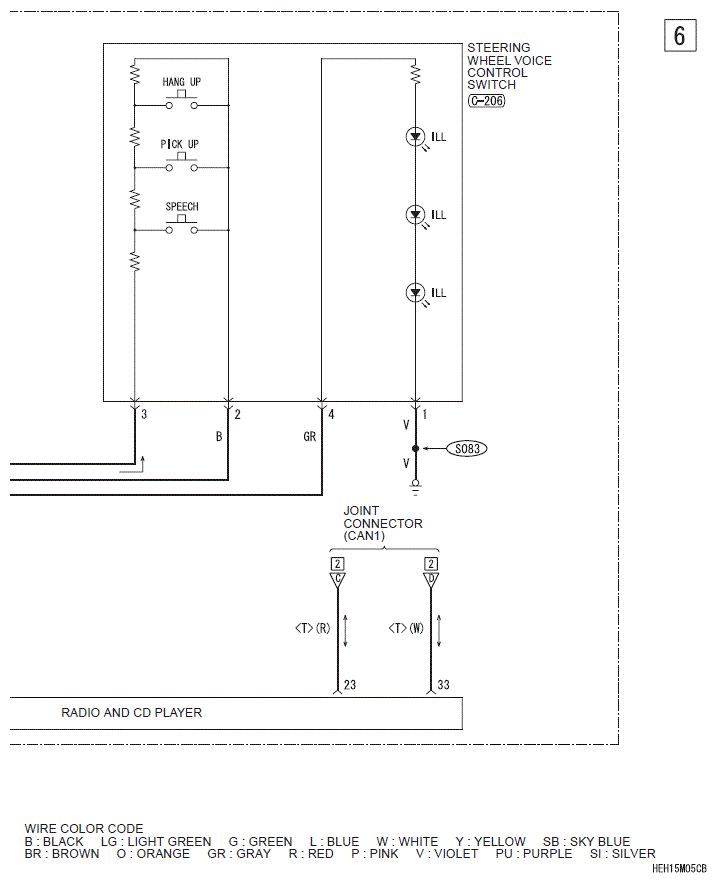

Fig 6: Hands-Free Interface System Circuit Diagram (6 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

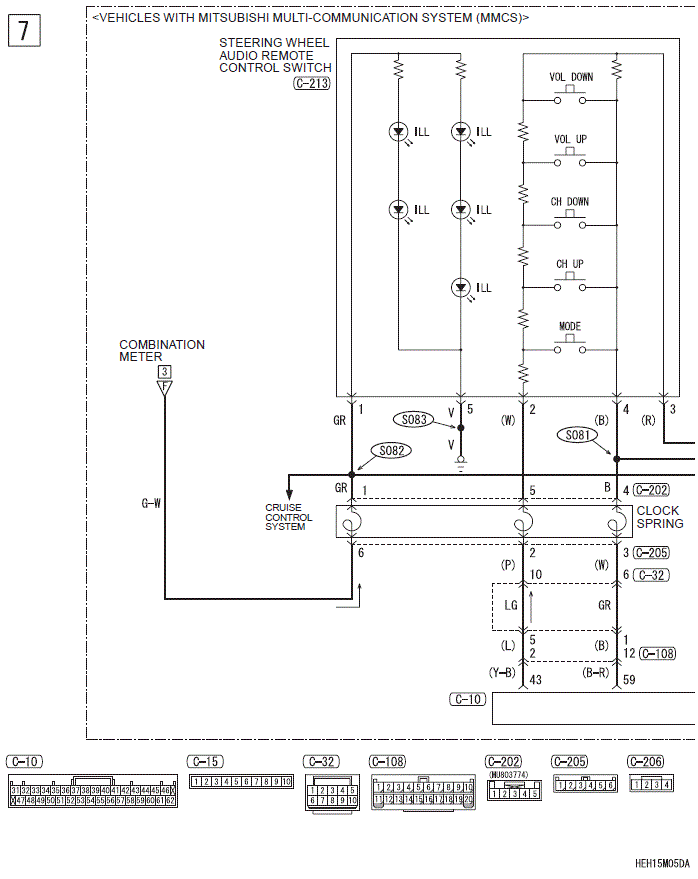

Fig 7: Hands-Free Interface System Circuit Diagram (7 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

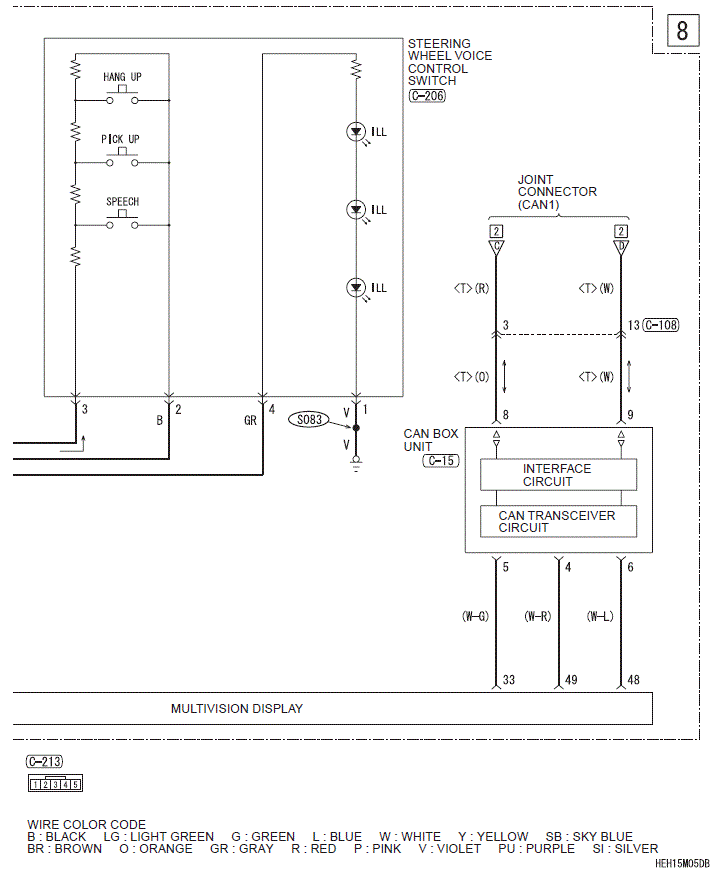

Fig 8: Hands-Free Interface System Circuit Diagram (8 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

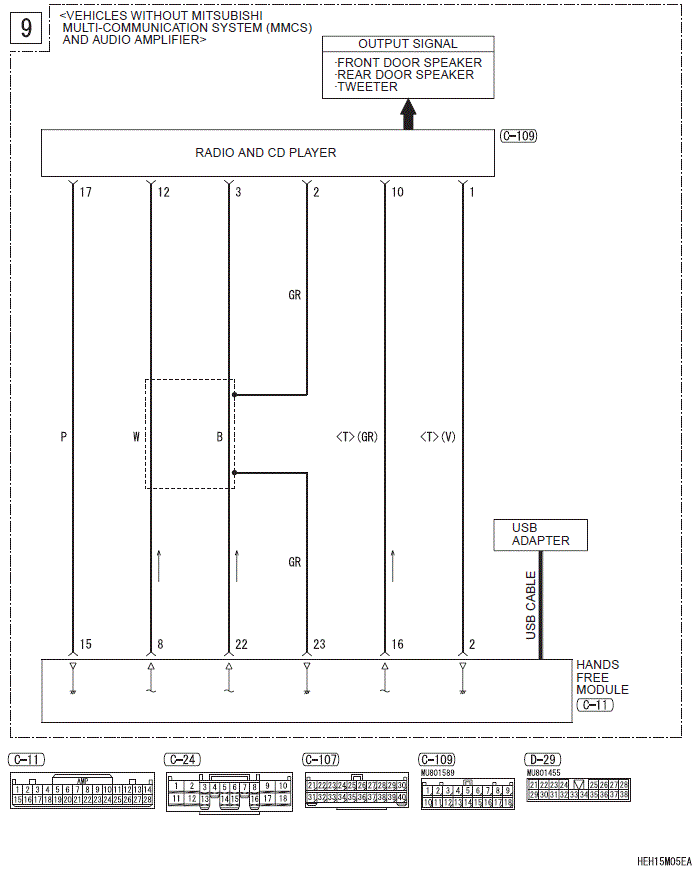

Fig 9: Hands-Free Interface System Circuit Diagram (9 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

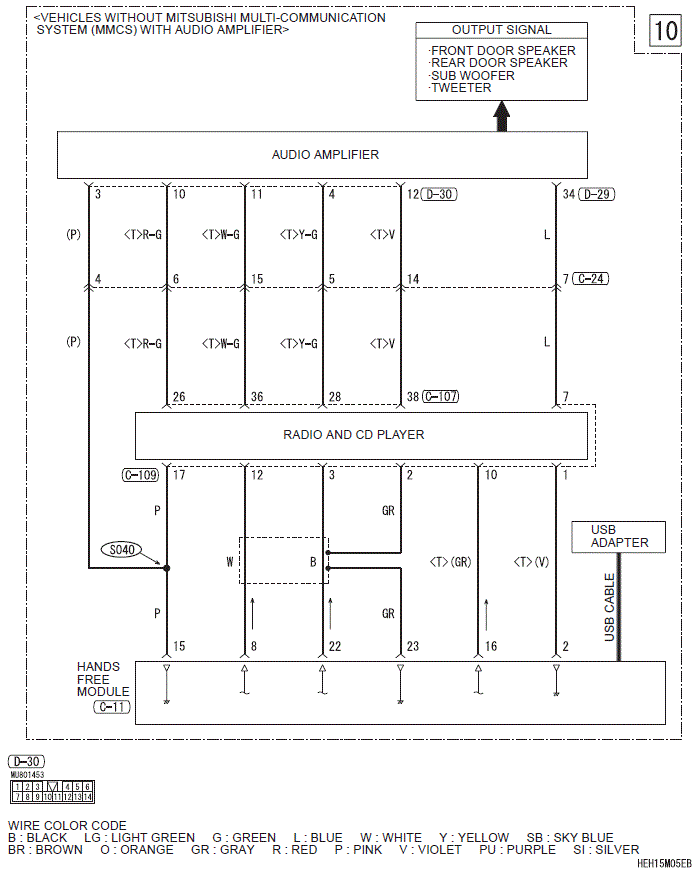

Fig 10: Hands-Free Interface System Circuit Diagram (10 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

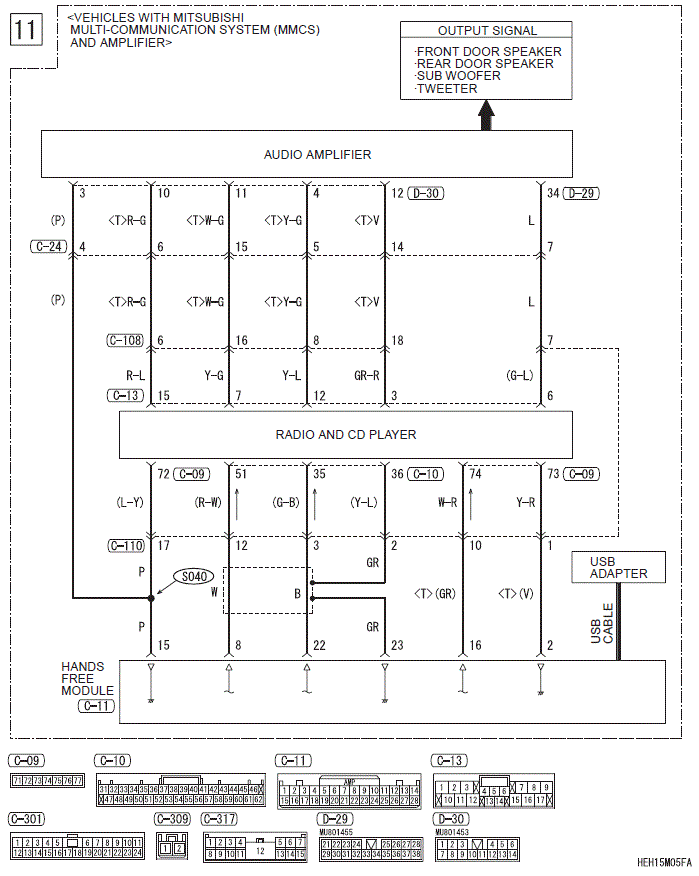

Fig 11: Hands-Free Interface System Circuit Diagram (11 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

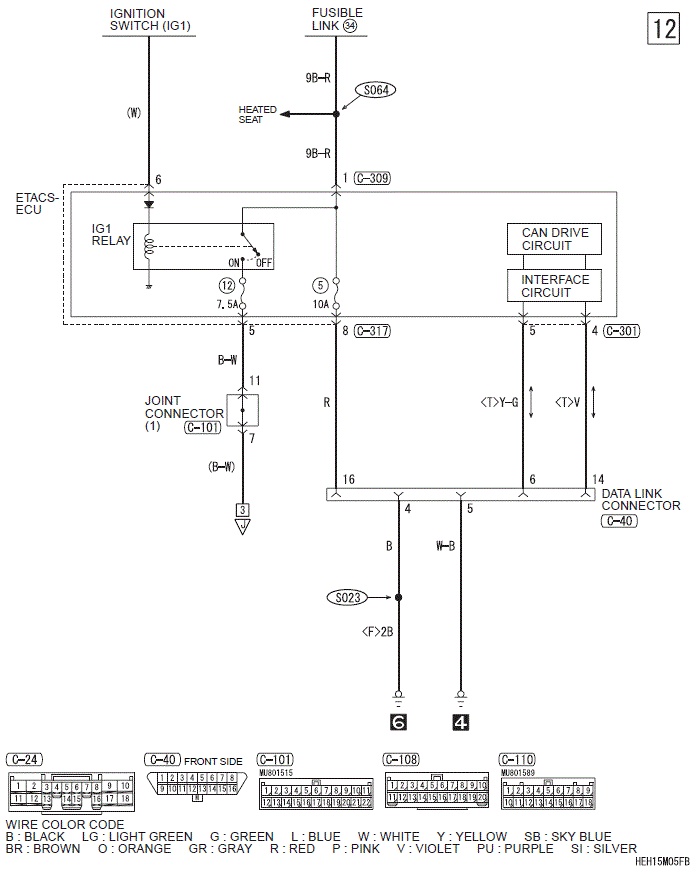

Fig 12: Hands-Free Interface System Circuit Diagram (12 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
