>>A<< Rivets Installation

Rivet the slide sensor cover to the slide adjuster according to the procedure below.

1. Insert the rivets into the slide sensor cover and slide adjuster.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in the position.

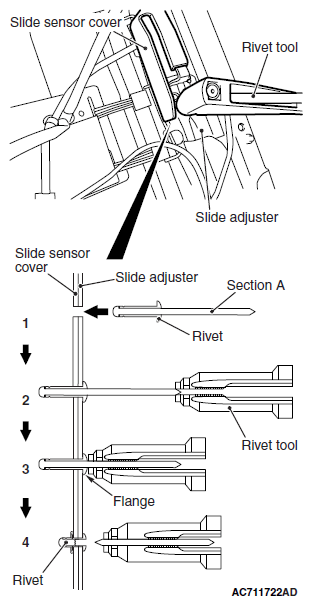

   Fig 1: Installing Rivet On Slide Sensor Cover

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
