Supplemental Restraint System (SRS) - Lancer Evolution
›
General Information
›
Schematic
General Information: Schematic

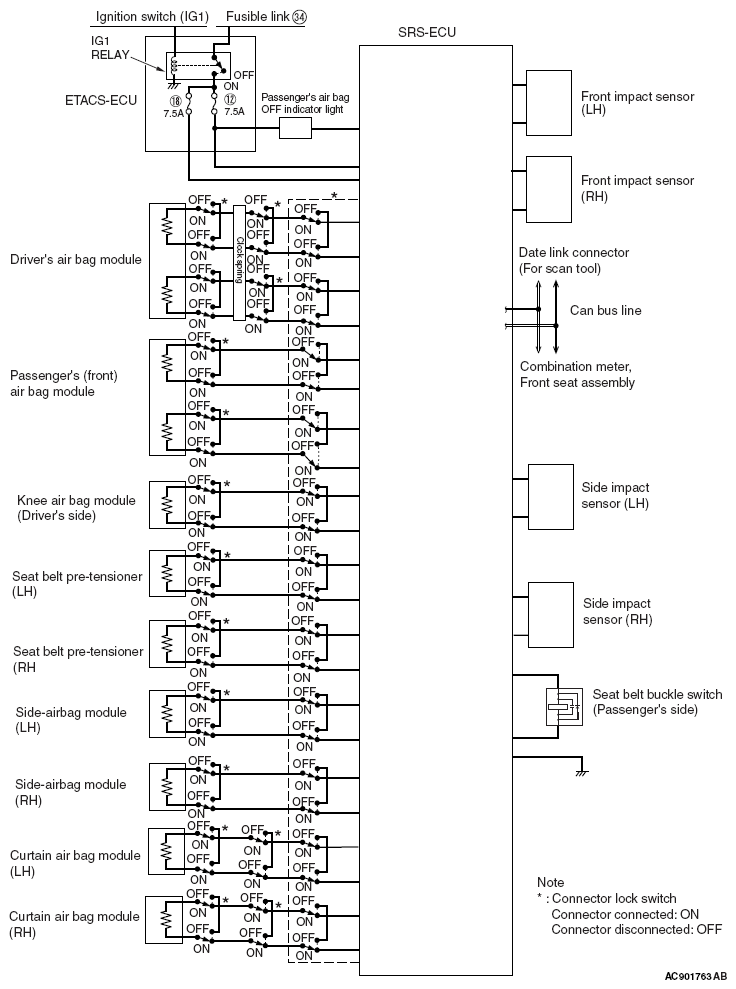

Fig 1: Supplemental Restraint System Schematic Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
