Charging System - Lancer
›
Generator Assembly
›
Removal And Installation - 2.0L Engine Turbo
›
Notes
Removal And Installation - 2.0L Engine Turbo: Notes

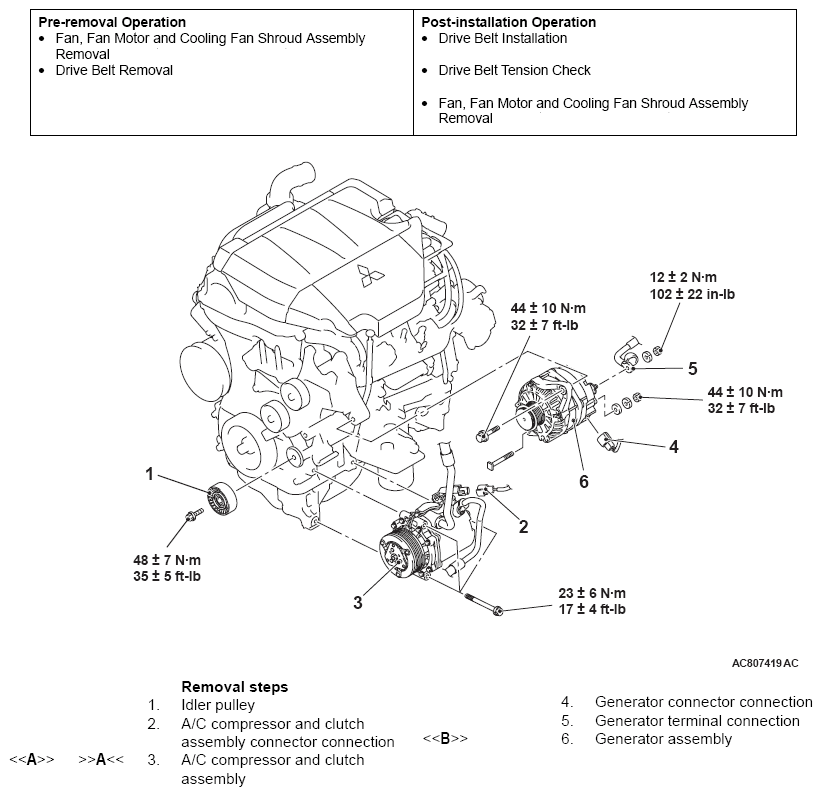

Fig 1: Generator Assembly Components With Torque Specifications (2.0L Engine Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
