Engine Control System - Lancer
›
Accelerator Pedal
›
Removal And Installation
›
Vehicles Without Aluminum Pedal Pad
Vehicles Without Aluminum Pedal Pad

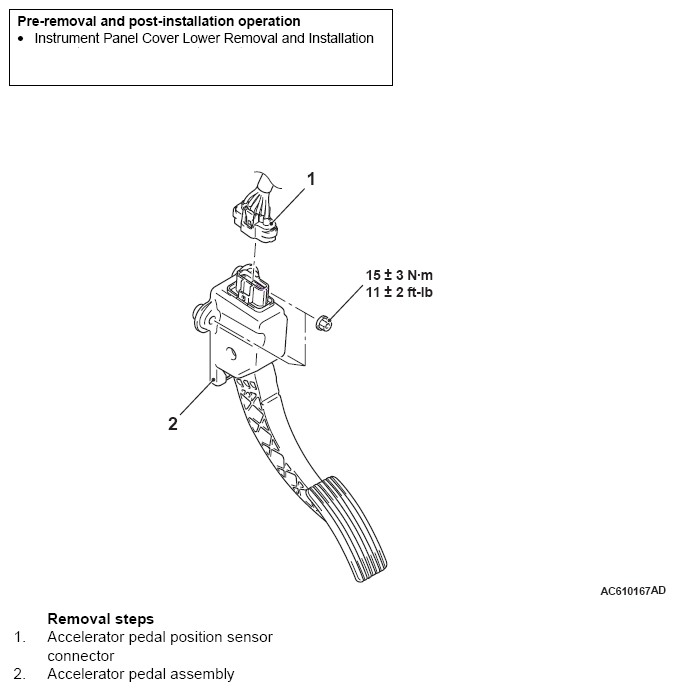

Fig 1: Accelerator Pedal Components With Torque Specification (Vehicles Without Aluminum Pedal Pad)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
