Inspection Procedure 12: Keyless Entry System Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

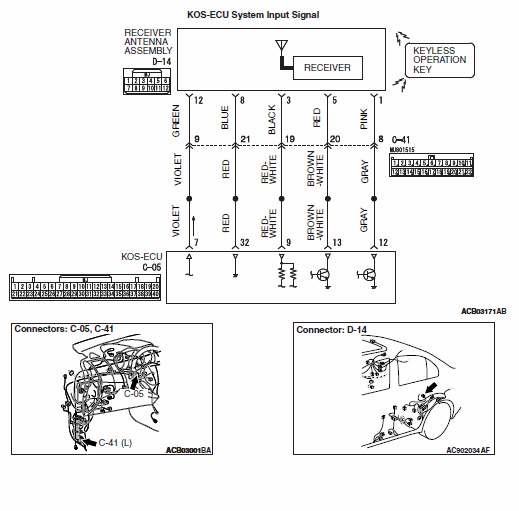

Fig 1: KOS-ECU System Input Signal Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
