Section 18 (Wireless Control Module (WCM) - Lancer Evolution)
›
Diagnosis
›
Id Codes Registration Judgment Table
›
Registration Flow Chart
Registration Flow Chart
WARNING:
This page is about a different variant/trim than selected.

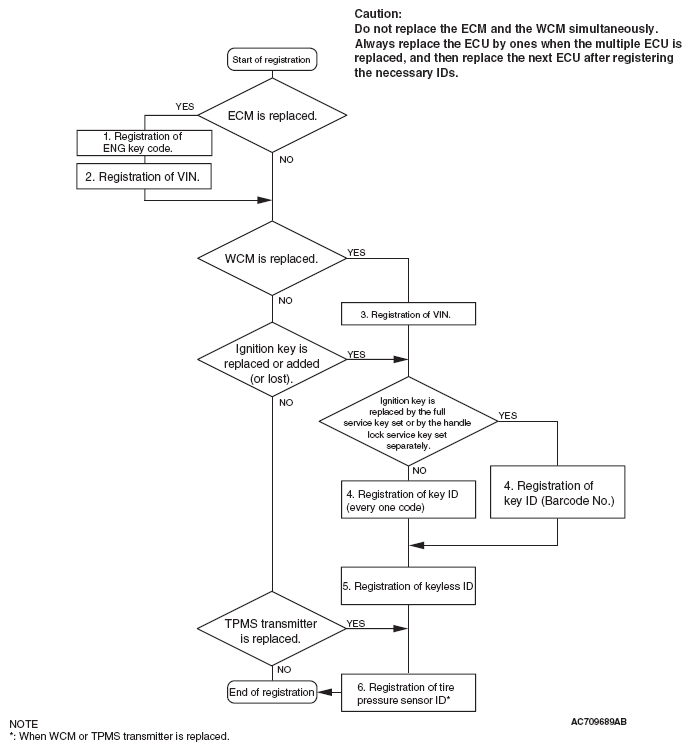

Fig 1: Registration Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
