Inspection Procedure 7: Steering Wheel Voice Control Switch Illumination Does Not Come On: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

Fig 1: Steering Wheel Voice Control Switch Illumination Circuit Diagram
G00527917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

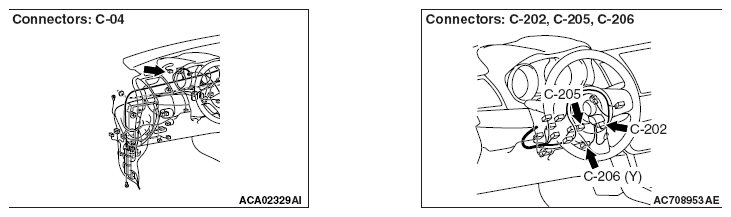

Fig 2: Locating Connectors C-04, C-202, C-205, C-206
G07667375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
