Wireless Control Module (WCM)
›
WCM
›
Removal And Installation
›
Notes
Removal And Installation: Notes
CAUTION:
When WCM has been replaced, all key ID codes should be registered, referring to the
ID CODE REGISTRATION JUDGMENT TABLE
.

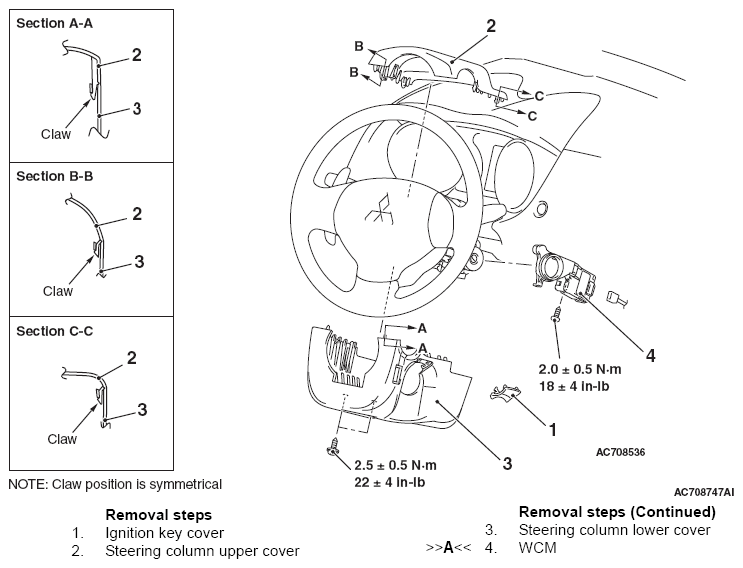

Fig 1: Removing/Installing WCM With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
