Removal And Installation

NOTE: Refer to INSTRUMENT PANEL ASSEMBLY FOR THE CLIP LOCATION .

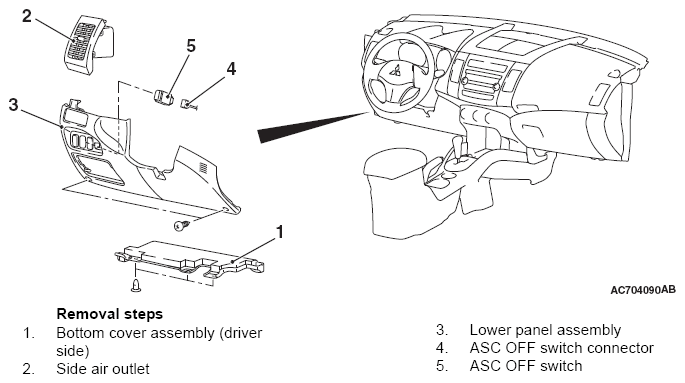

Fig 1: Removing/Installing ASC OFF Switch
G07038343Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
