Removal And Installation < Liftgate Lower >: Notes
WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Liftgate Hinge Sealant Applying Areas
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

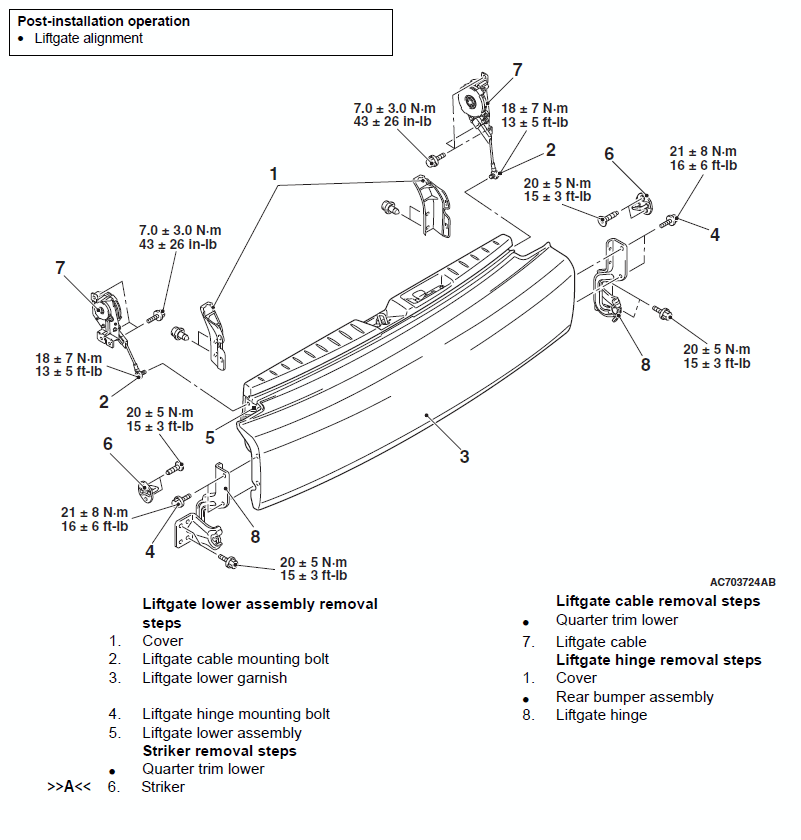

Fig 2: Liftgate Lower Replacement Components With Torque Specifications
