Construction Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

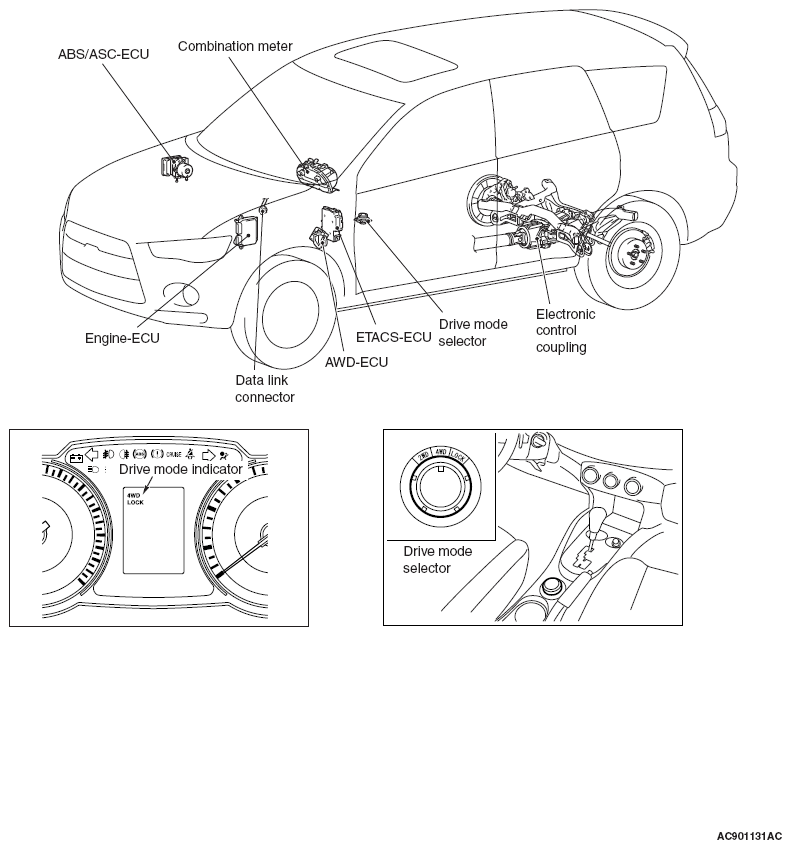

Fig 1: Electronic Control AWD Construction Diagram
G07038216Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
