Inspection Procedure 1: Scan tool MB991958 cannot Communicate with the Electronic Control AWD System: Notes

WARNING: This page is about a different variant/trim than selected.

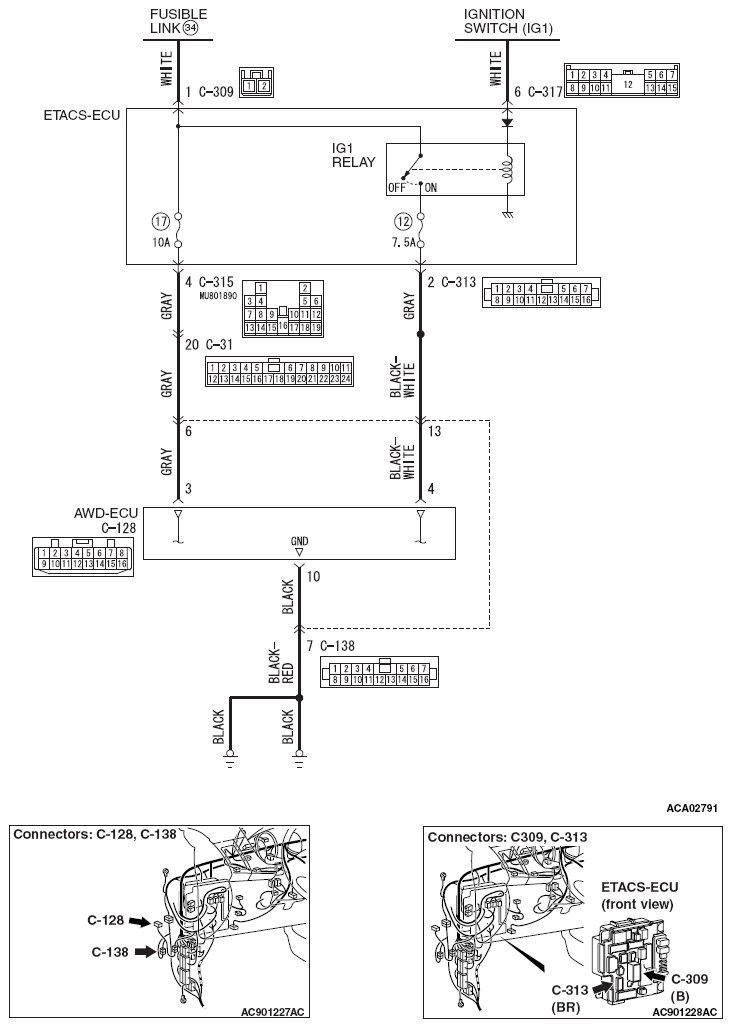

Fig 1: Electronic Control AWD Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
