Warning/Caution Labels

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustrations: Follow label instructions when servicing SRS. The label I is not to be removed except by owner. If the other labels are dirty or damaged, replace them.

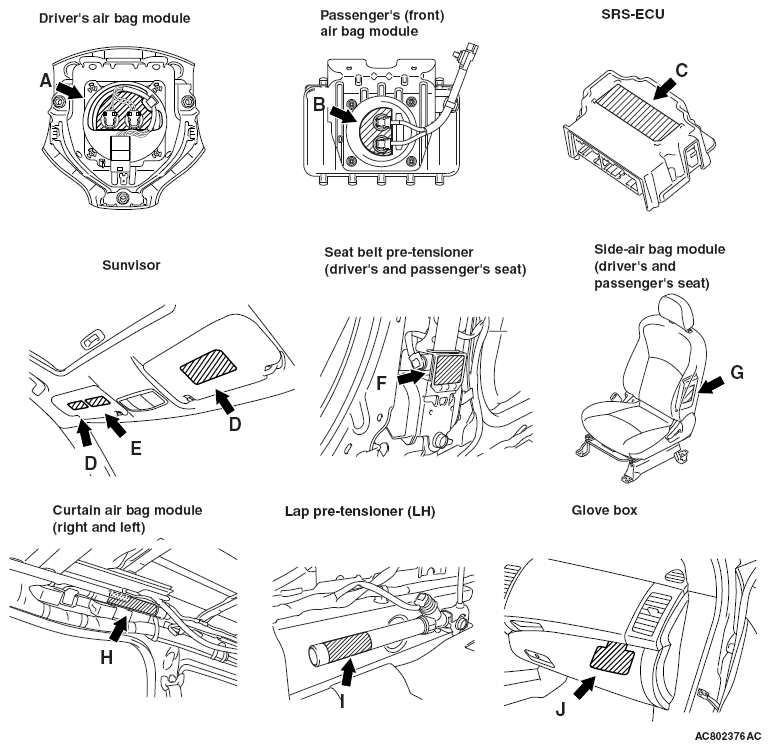

Fig 1: Locating Supplemental Restraint System Warning/Caution Labels
G07035529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WARNING LABEL DESCRIPTION

Label contents
A DANGER
FLAMMABLE EXPLOSIVE
DO NOT
DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY; OR STORE AT HIGH TEMPERATURE (93°C or HIGHER).
REFER TO AIR BAG MODULE(S) AND CLOCK SPRING  FOR DETAILS.
B WARNING FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:
  • DO NOT REPAIR. DISASSEMBLE OR TAMPER.
  • AVOID CONTACT WITH FLAME OR ELECTRICITY.
  • DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.
  • STORE BELOW 200°F (93°C).
  • BEFORE DOING ANY WORK INVOLVING MODULE, READ Service Information FOR IMPORTANT FURTHER DATA.
C
CAUTION: DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SRS CONTROL UNIT (SRS-ECU) .
D < EXCEPT VEHICLES FOR CANADA >
G05102853
 WARNING EVEN WITH ADVANCED AIR BAGS
  • Children can be killed or seriously injured by the air bag
  • The back seat is the safest place for children
  • Never put a rear-facing child seat in the front
  • Always use seat belts and child restraints
  • See Owner's Manual for more information about air bags
D < VEHICLES FOR CANADA >
G07035531
 WARNING DEATH or SERIOUS INJURY can occur
  • Children 12 and under can be killed by the air bag.
  • The BACK SEAT is the SAFEST place for children.
  • NEVER put a rear-facing child seat in the front.
  • Sit as far back as possible from the air bag.
  • ALWAYS use SEAT BELTS and CHILD RESTRAINS.
E
G07035532G06479990
G07035532G06479990
WARNING: HIGHER ROLLOVER RISK
Avoid Abrupt Maneuvers and Excessive Speed.
Always Buckle up.
See Owner's Manual For Further Information.
F, I DANGER: BELT PRETENSIONER
G WARNING SRS AIR BAG MODULE FLAMMABLE/EXPLOSIVE
TO AVOID SERIOUS INJURY:
  • DO NOT REPAIR, DISASSEMBLE OR TAMPER.
  • AVOID CONTACT WITH FLAME OR ELECTRICITY.
  • DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.
  • STORE BELOW 200°F (93°C).
  • BEFORE DOING ANY WORK INVOLVING MODULE, READ Service Information FOR IMPORTANT FURTHER DATA.
H DANGER
FLAMMABLE EXPLOSIVE
SRS AIR BAG MODULE
  • Do not disassemble or shock.
  • Do not heat or incinerate.
  • Do not contact with electricity or tester probes.
  • Do not test or diagnose.
  • Do not store in more than 200°F (93°C).
  • Store the air bag cover is top.
  • For information on handing, replacement, and disposal methods, refer to CURTAIN AIR BAG MODULE(S) .
J < EXCEPT VEHICLES FOR CANADA > This Vehicle is Equipped with Advanced Air Bags
Even with Advanced Air Bags
Children can be killed or seriously injured by the air bag.
The back seat is the safest place for children.
Never put a rear-facing child seat in the front.
Always use seat belts and child restraints.
See Owner's Manual for more information about air bags.
Not to be removed except by owner.
J < VEHICLES FOR CANADA > WARNING MISE EN GARDE
Children Can Be KILLED or INJURED by Passenger Air Bag
The back seat is the safest place for children 12 and under.
Make sure all children use seat belts or child seats.
Not to be removed except by owner.
