Liftgate Latch Switch Check
WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

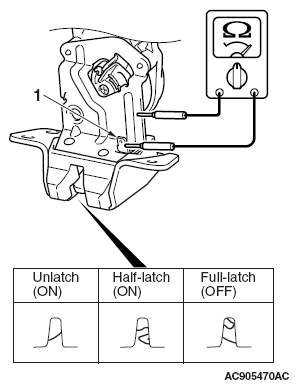

LIFTGATE LATCH SWITCH CONTINUITY CHART
| Claw position |
Terminal number |
Normal value |
| Unlatch (ON)/Half-latch (ON) |
1 - Ground |
Continuity exists (2 Ω or less) |
| Full-latch (OFF) |
1 - Ground |
No continuity |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
