Removal And Installation: Notes

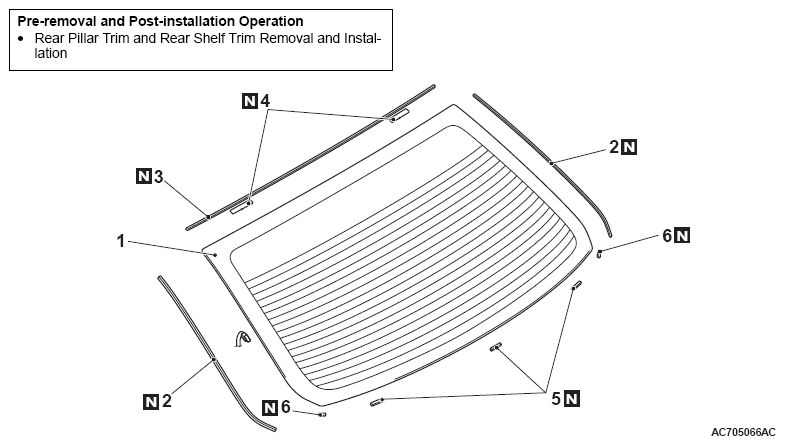

Fig 1: Removing/Installing Rear Window Glass Trim

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

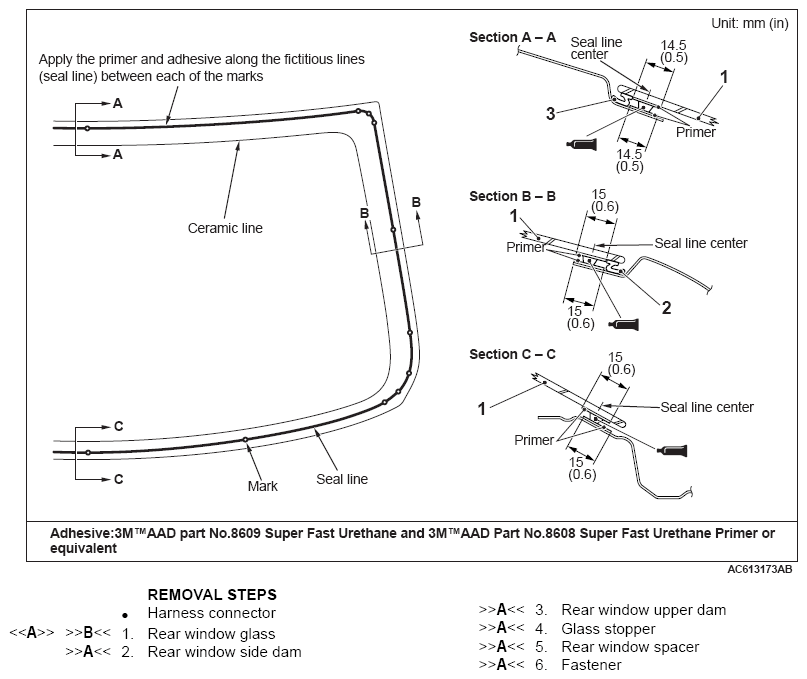

Fig 2: Removing/Installing Rear Window Glass Sealant Area

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
