Circuit Diagrams - Lancer Evolution
›
Accessory Socket
Accessory Socket

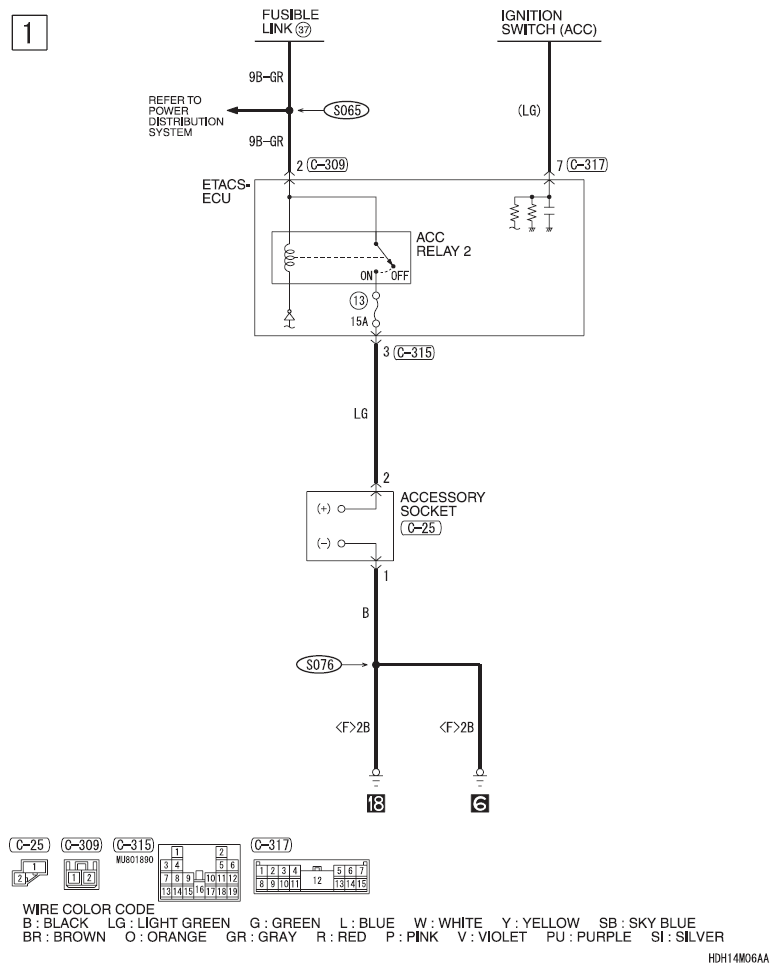

Fig 1: Accessory Socket - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
