Headlight Leveling System

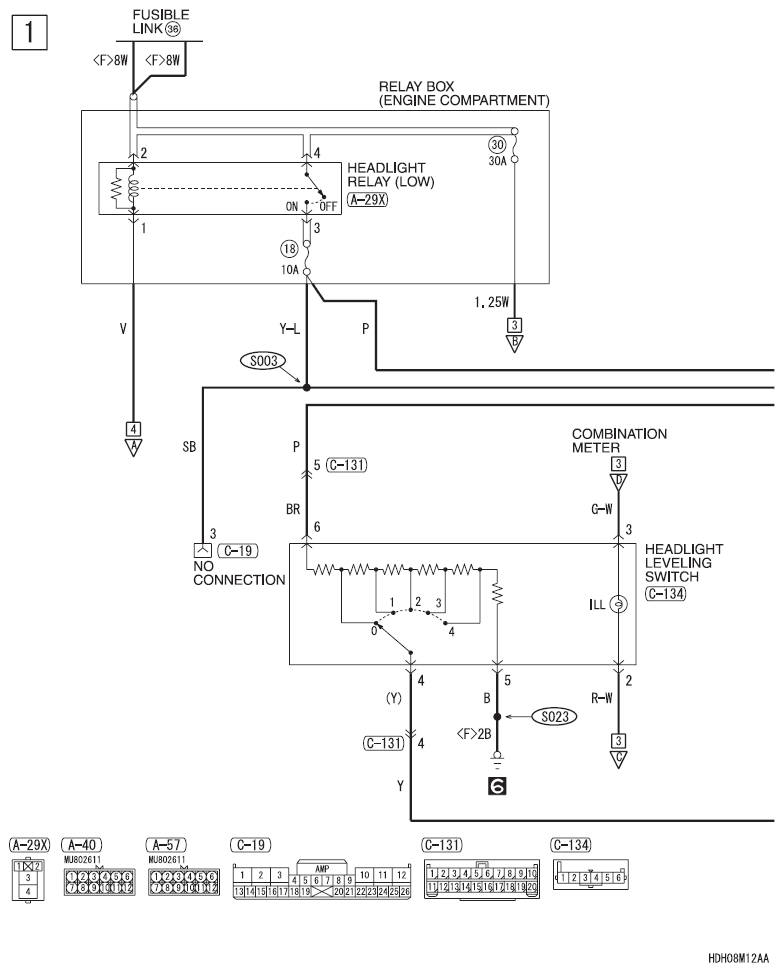

Fig 1: Headlight Leveling System - Circuit Diagram (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

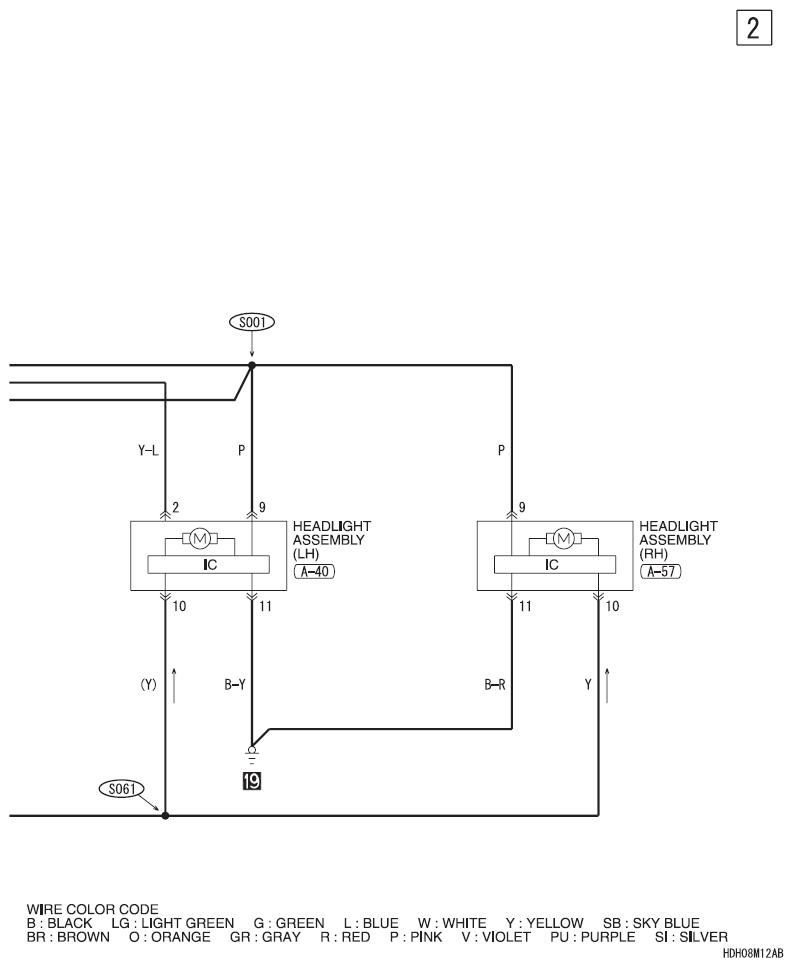

Fig 2: Headlight Leveling System - Circuit Diagram (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

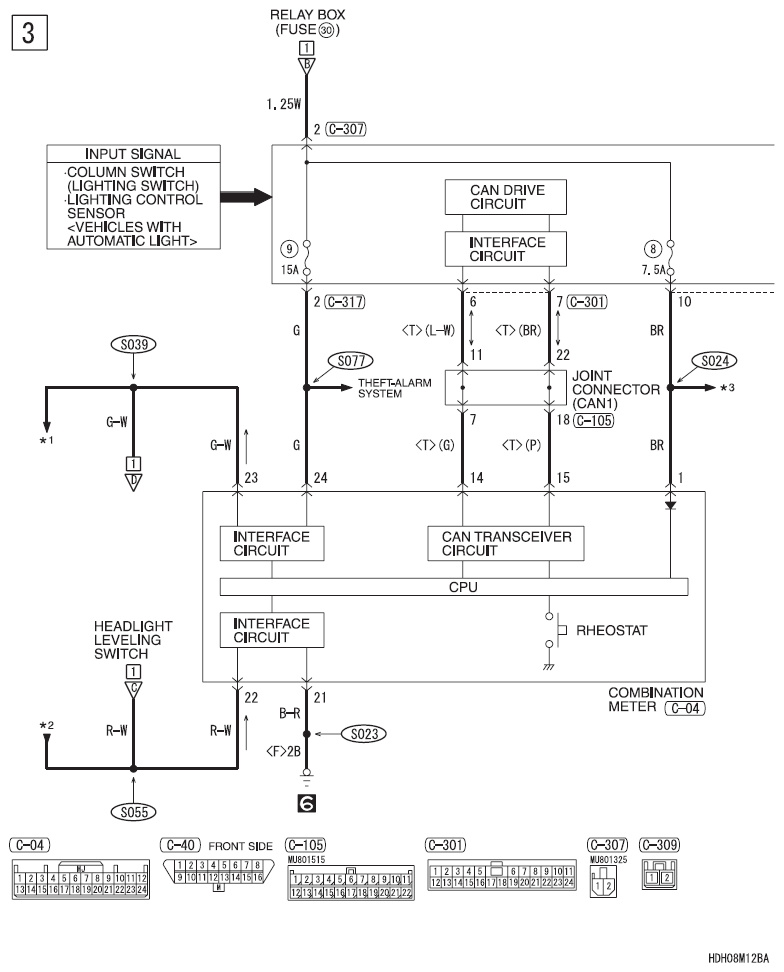

Fig 3: Headlight Leveling System - Circuit Diagram (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

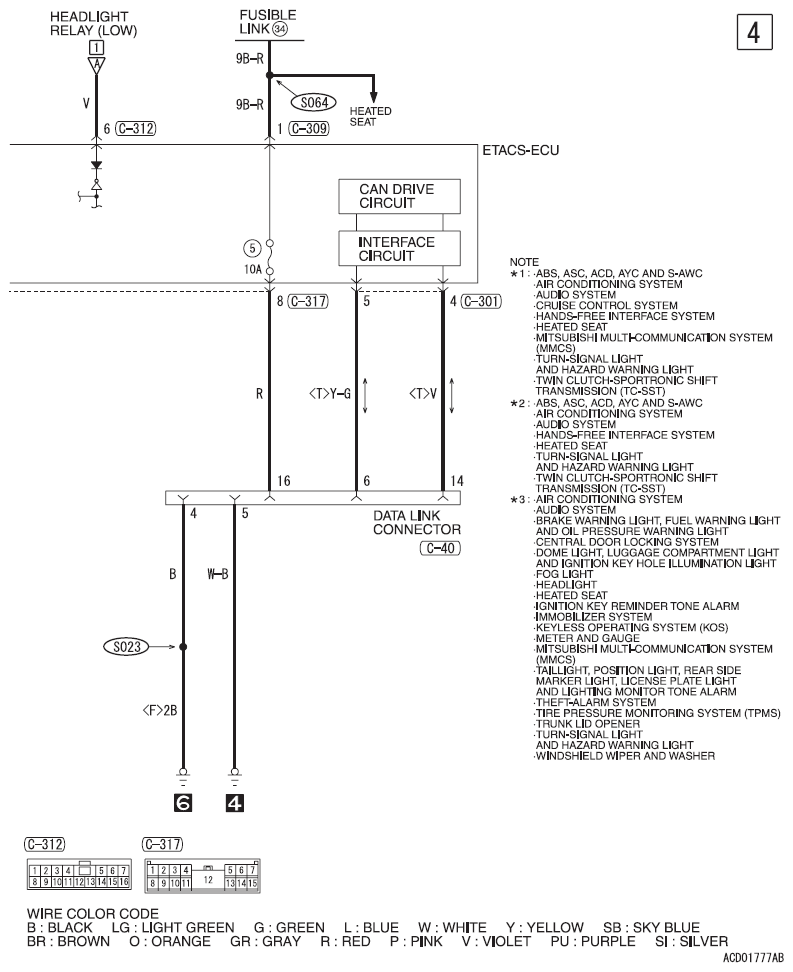

Fig 4: Headlight Leveling System - Circuit Diagram (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
