Circuit Diagrams - Lancer Evolution: Stoplight

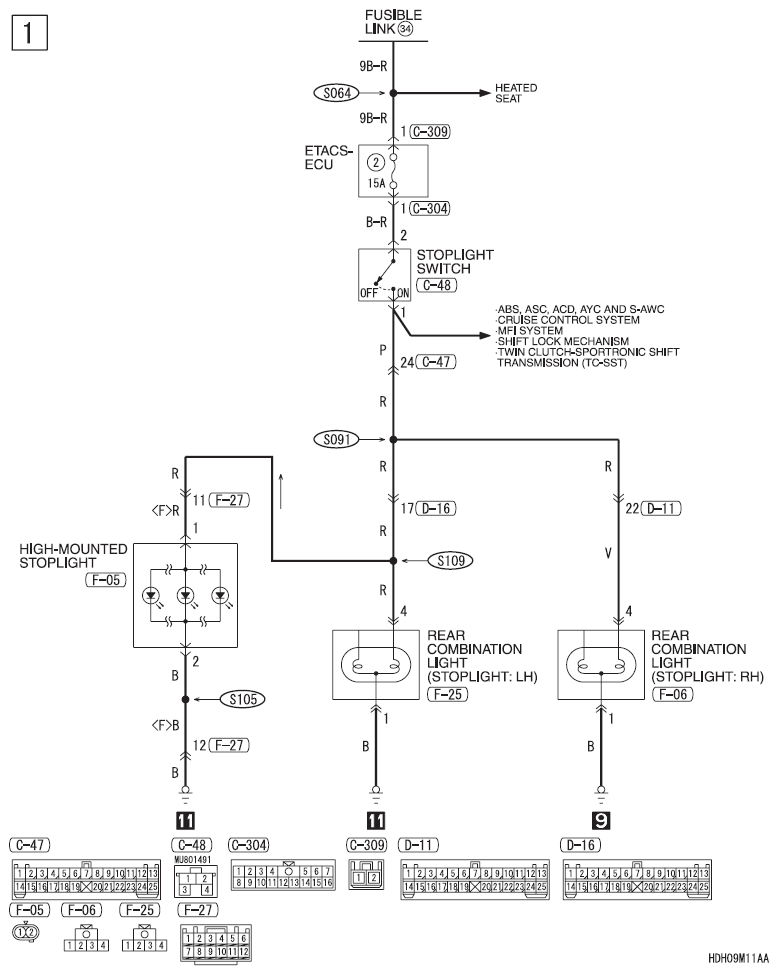

Fig 1: Stoplight - Circuit Diagram
G09620826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
