Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Tool	Tool number and name	Supersession	Application

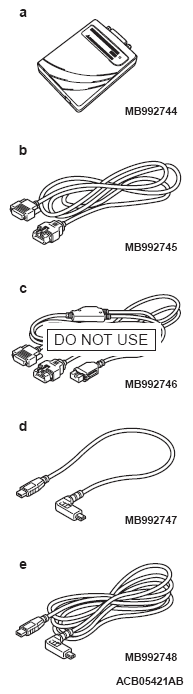

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992744 MB992745 MB992746 MB992747 MB992748 Vehicle communication interface-Lite (V. C. I.-Lite) V. C. I.-Lite main harness A (for vehicles with CAN communication) V. C. I.-Lite main harness B (for vehicles without CAN communication) V. C. I.-Lite USB cable short V. C. I.-Lite USB cable long	-	CAN bus diagnostics or service data check.

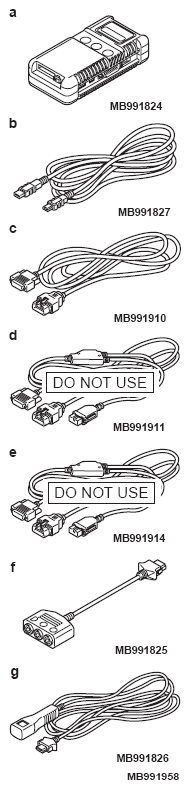

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M. U. T.-III sub-assembly Vehicle communication interface (V. C. I.) M. U. T.-III USB cable M. U. T.-III main harness A (Vehicles with CAN communication system) M. U. T.-III main harness B (Vehicles without CAN communication system) M. U. T.-III main harness C (for Chrysler models only) M. U. T.-III measurement adapter M. U. T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M. U. T.-III Trigger Harness is not necessary when pushing V. C. I. ENTER key.	CAUTION: M. U. T.-III main harness A (MB991910) should be used. M. U. T.-III main harness B and C should not be used for this vehicle. CAN bus diagnostics or service data check.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Check harness LED harness LED harness adapter Probe	General service tool (jumper)	Continuity check and voltage measurement at harness wire or connector For checking connector pin contact pressure For checking power supply circuit For checking power supply circuit For connecting a locally sourced tester
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	-	Continuity check and voltage measurement at harness wire or connector
