Power Window Operating Current Check
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

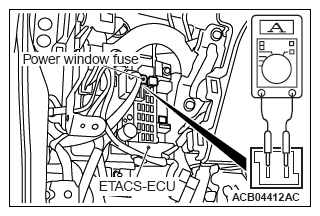

- Remove the power window fuse to check that it is normal, and connect a multimeter as shown in the illustration.
- Raise a door window glass with the power window switch to measure the current during operation.
Standard value: 7 A or less [Power supply voltage 14.5 ± 0.5V at 25°C (77°F)]
NOTE: If the power supply voltage does not meet the standard value, check and repair the generator and the battery. Then carry out this check again. - If the value is outside the standard value, adjust the door window glass (Refer to DOOR WINDOW GLASS ADJUSTMENT ).
