Starter Relay Check

Battery voltage	Terminal No. to be connected to tester	Continuity test result
Not applied	4 - 3	Open circuit
Connect terminal No. 2 and battery (+) terminal. Connect terminal No. 1 and battery (-) terminal.	4 - 3	Continuity (Less than 2 ohms)

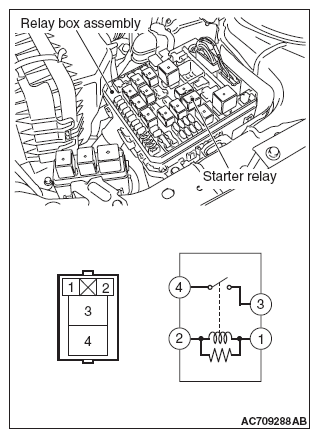

Fig 1: Starter Relay Location & Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
