Emission Control - Lancer Evolution
›
Vacuum Hoses
›
Vacuum Hose Routing
Vacuum Hose Routing

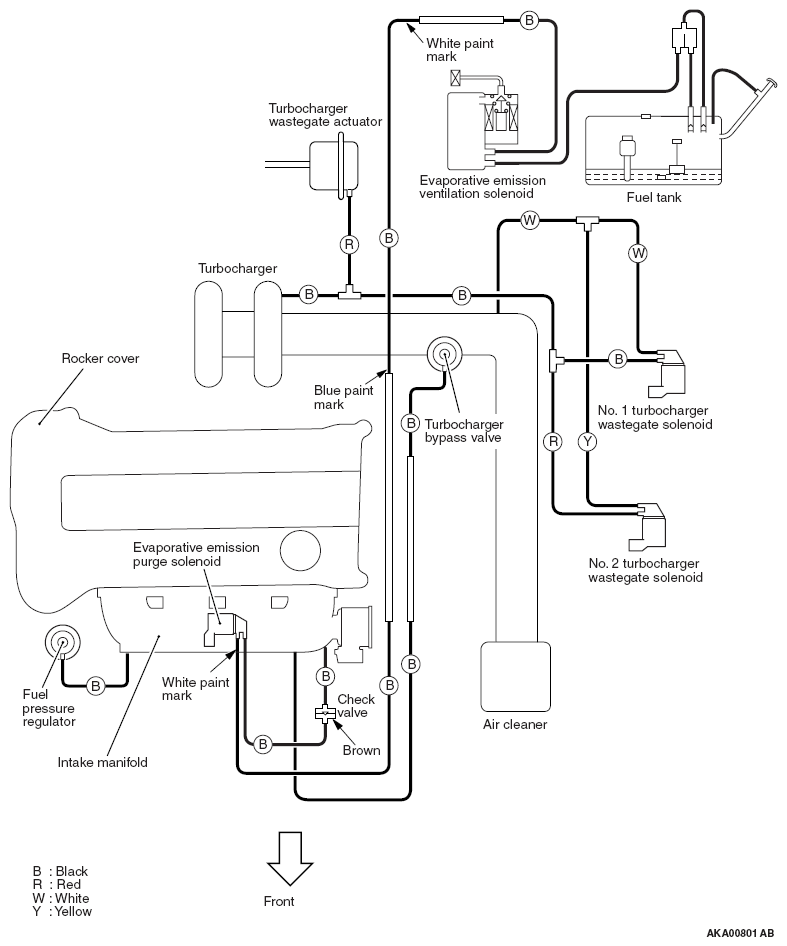

Fig 1: Vacuum Hose Routing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
