Removal And Installation: Notes

WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

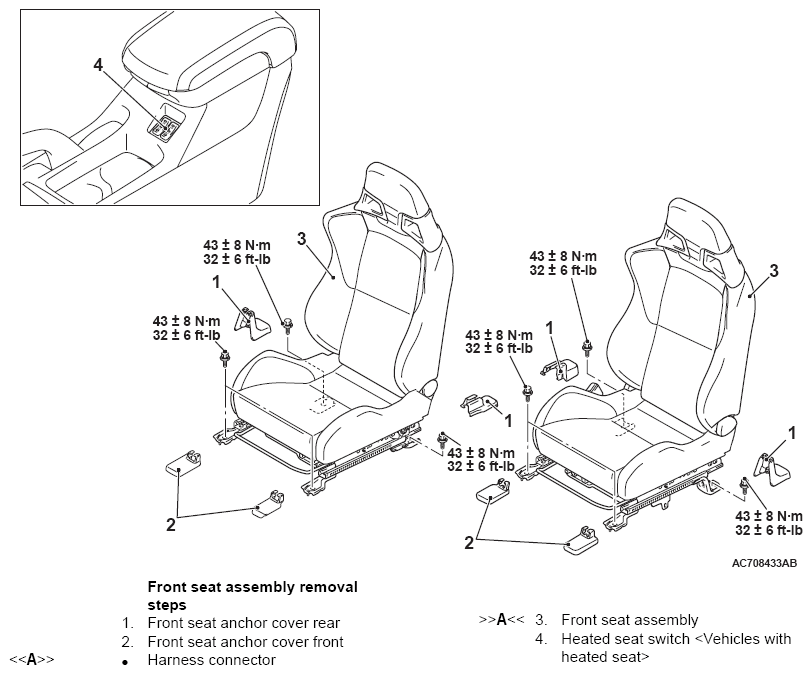

Fig 1: Front Seat Assembly Components With Torque Specifications
G09651722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
