Disassembly And Assembly: Notes

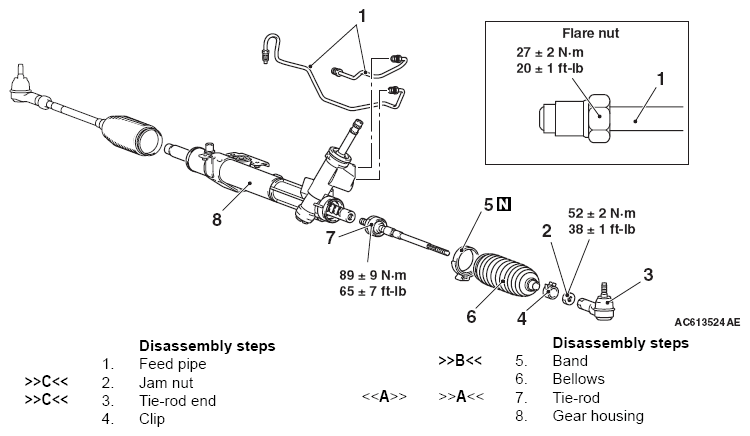

Fig 1: Steering Gear Disassembly Steps With Torque Specifications
G09651017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
