INSPECTION PROCEDURE: The Liftgate does not Open: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

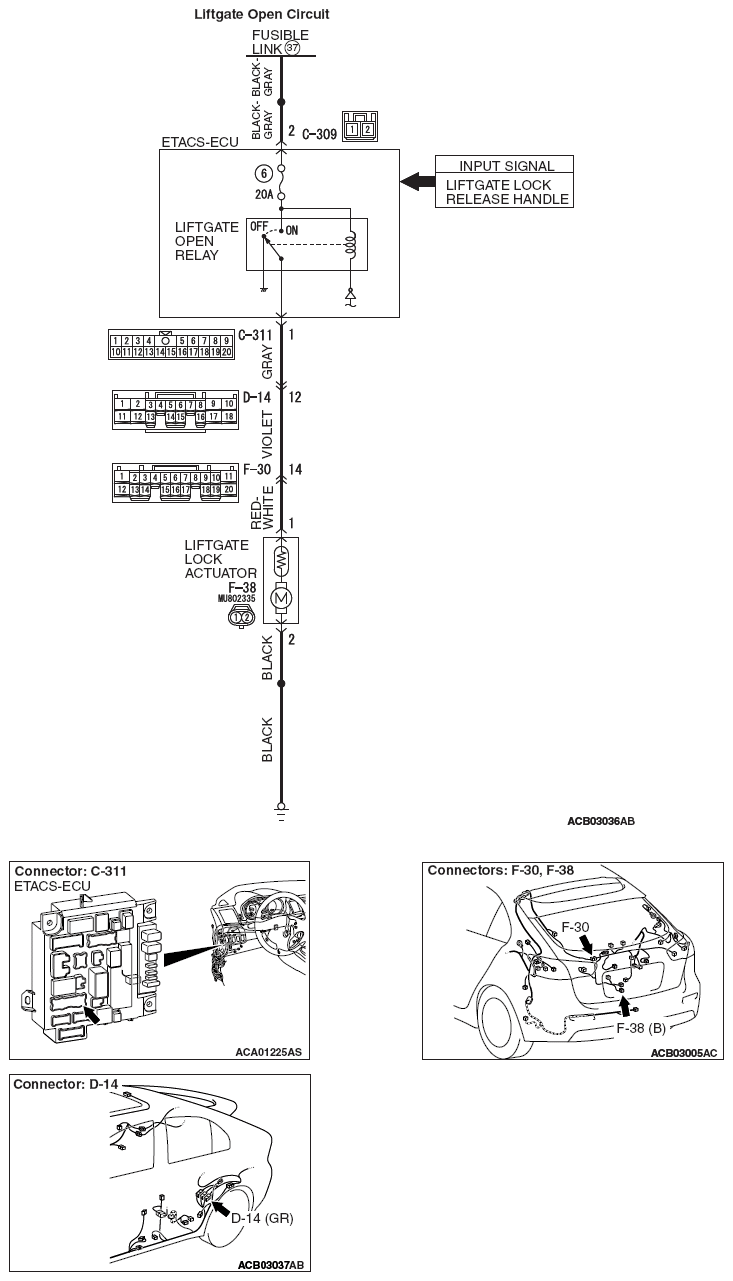

Fig 1: Liftgate Open - Circuit Diagram
G09627669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
