Splice Locations
›
Engine Compartment
Engine Compartment

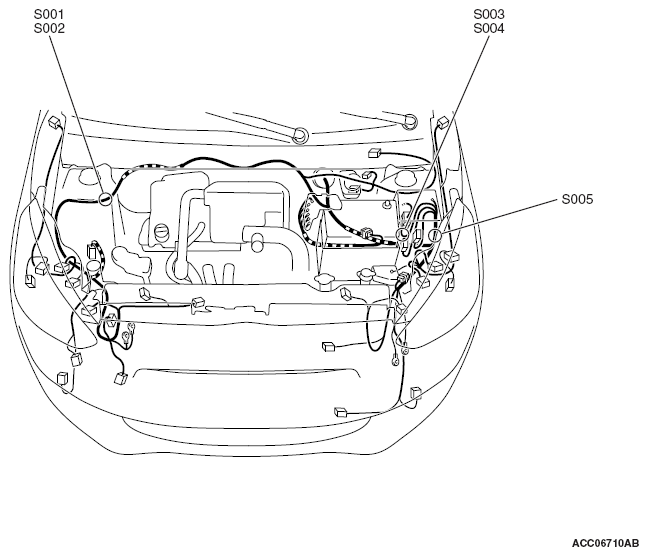

Fig 1: Engine Compartment Splice Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
