FixVault
Home
›
Mitsubishi
›
2014
›
Mirage ES, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System - Vehicles Without Keyless Operation System
›
Transmitter
›
Disassembly And Reassembly
›
Notes
Disassembly And Reassembly: Notes

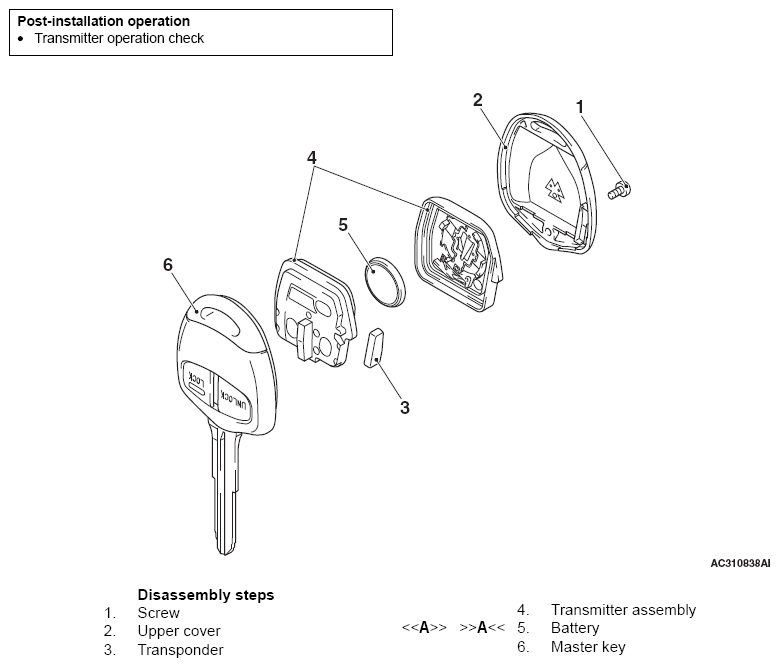

Fig 1: Disassembling And Reassembling Transmitter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
