< Fuel Pump Module >

NOTE: For the removal and installation procedures, refer to REMOVAL AND INSTALLATION  .

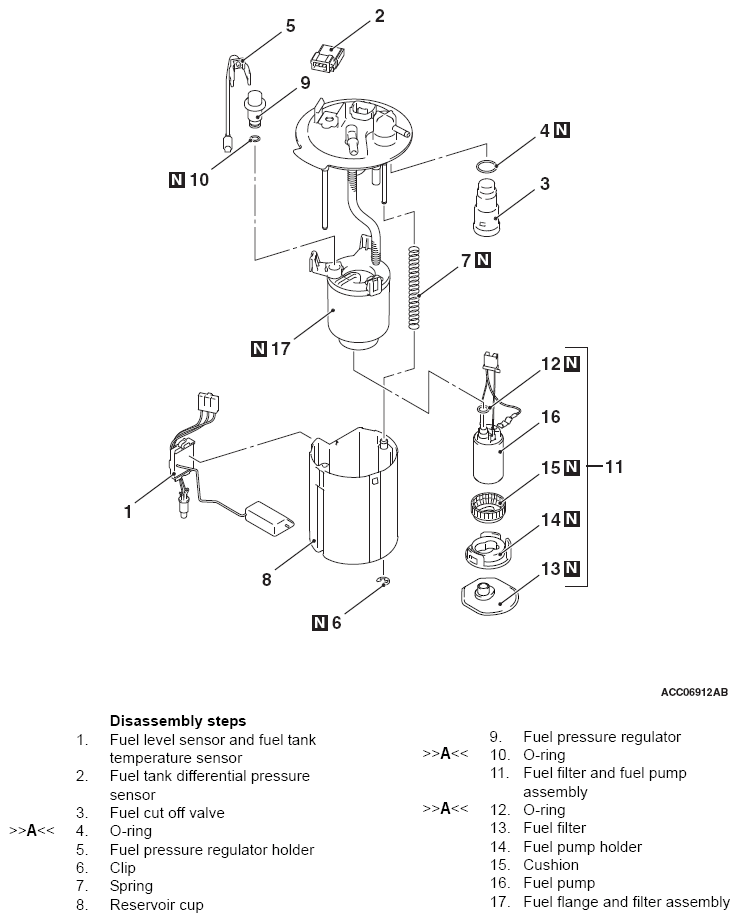

Fig 1: Disassembled And Assembled View Of Fuel Pump Module
G09628755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
