Mitsubishi
›
2014
›
Mirage ES, Standard Trans
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Floor Console Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

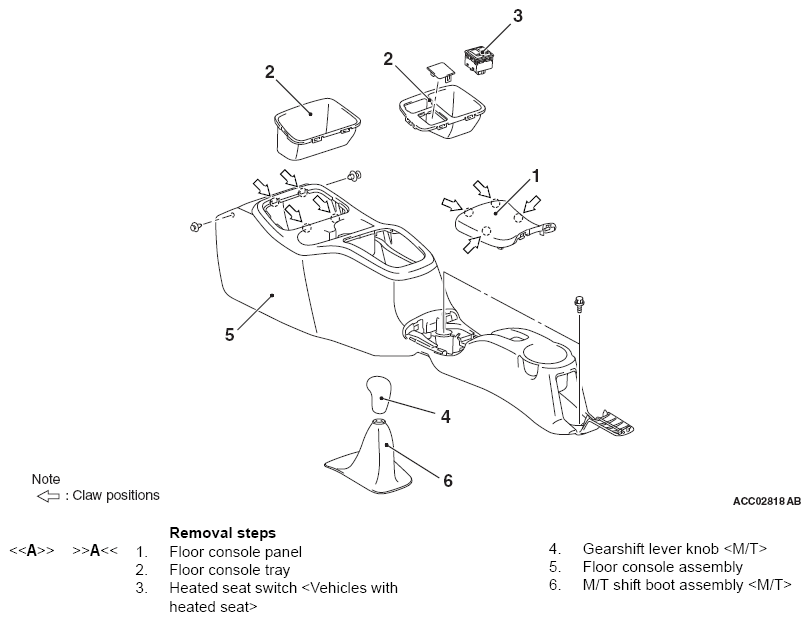

Fig 1: Removing/Installing Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
