Home › Mitsubishi › 2014 › Mirage ES, Standard Trans › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Rear Seat Assembly › Disassembly And Reassembly › Notes

Disassembly And Reassembly: Notes

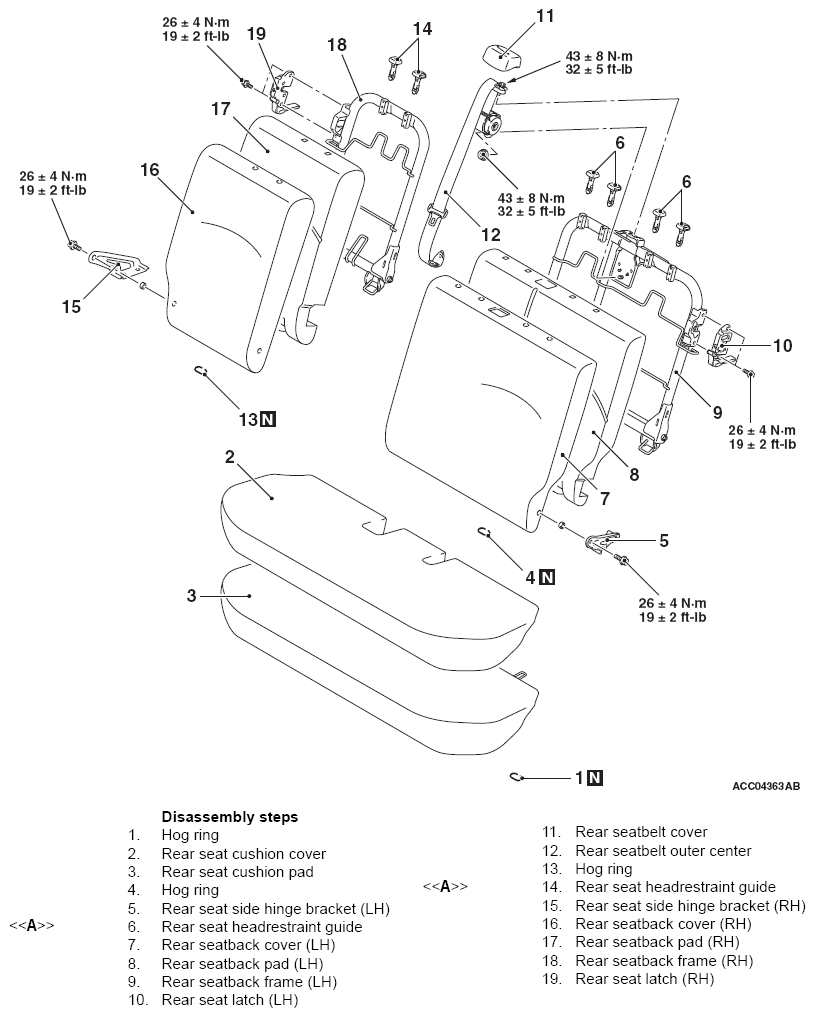

Fig 1: Disassembled View Of Seat Assembly With Torque Specifications
G09632535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
