Window Glass Installation
Window Glass Installation

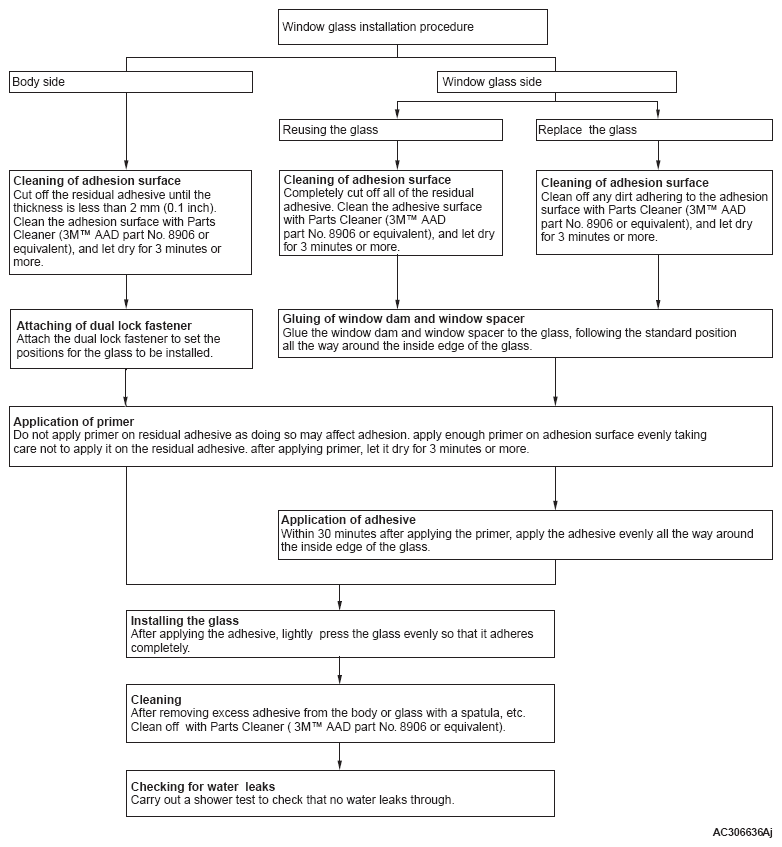

Fig 1: Window Glass Installation Procedure Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
