System Diagram

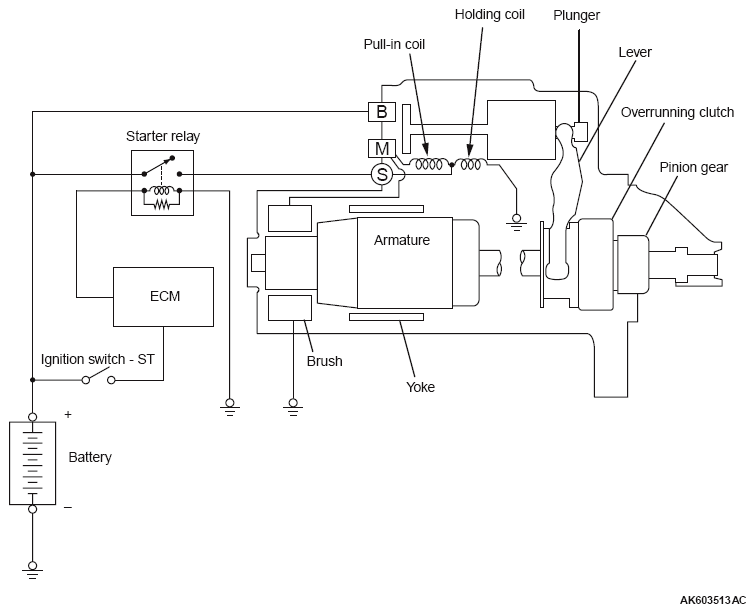

Fig 1: Engine Starting System Diagram
G09664746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
